Drum Machines ⇝ Roland ⇝ Roland Boss DR-5 Dr. Rhythm Section

The Boss DR-5 is a drum machine with backing accompaniment and can be used to sequence entire songs. Its design is geared toward guitarists who want to add drum, bass, and keyboard parts to their songs.

It has a guitar input with a built-in tuner and amp simulator.

To reinitialize a DR-5 to factory settings, hold down the two FRET SHIFT keys and then turn the power on. Then let go of the FRET SHIFT keys. You should see "System Init?" on the screen. Press ENTER to reinitialize the device, or EXIT to cancel.

There is a freeware software editor for Windows available from Rubicon Systems.

Specifications

Year Released: 1994

Number of Pads: 36

Polyphony: 19 notes

Preset Patterns: 200

User Patterns: 200

User Songs: 20

Preset Drumkits: 48

User Drumkits: 16

Tempo Range: 40 - 250 BPM

Sequencer Resolution: 48 PPQN

ROM Size: 256 waveforms at 16-bit resolution

Screen: custom LCD

Weight: 0.93 kg

Dimensions: 226 mm x 180 mm x 45 mm

The DR-5 can be powered with six AA batteries.

User Demo Videos

Rating

File Downloads

Boss DR-5 Manual

Boss DR-5 Service Notes

Items for Sale on Reverb

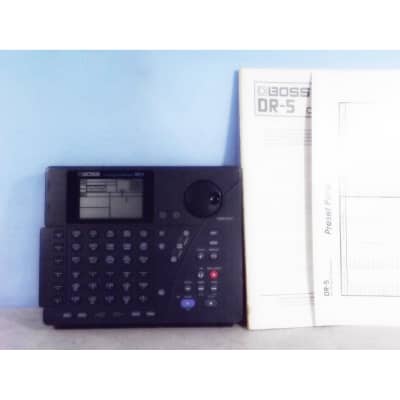

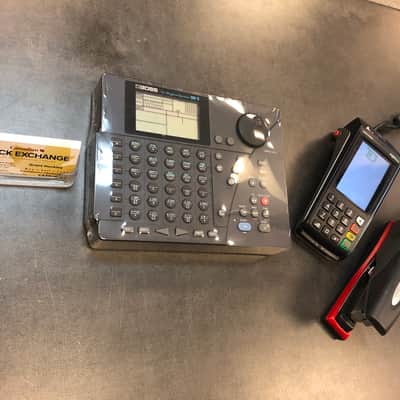

Boss Dr Rhythm Section DR-5 - Black ($87.53)

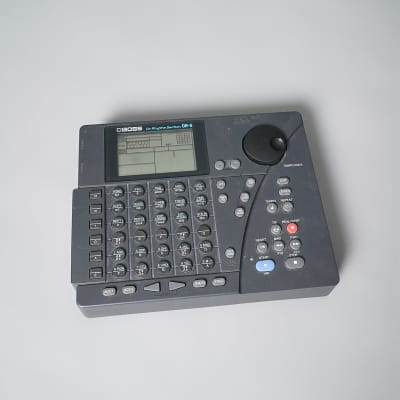

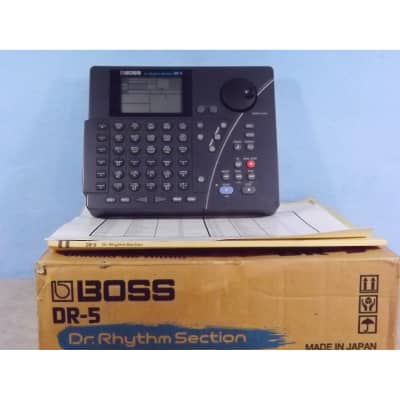

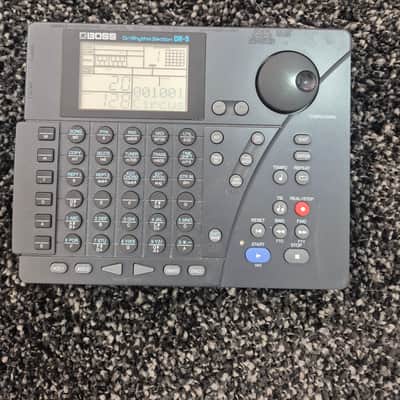

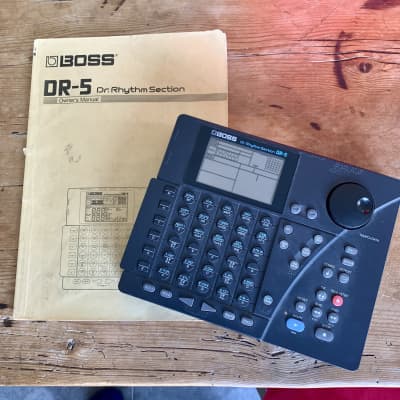

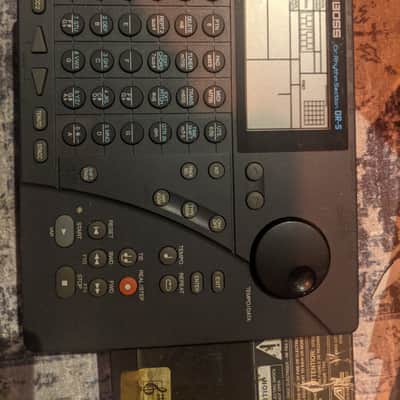

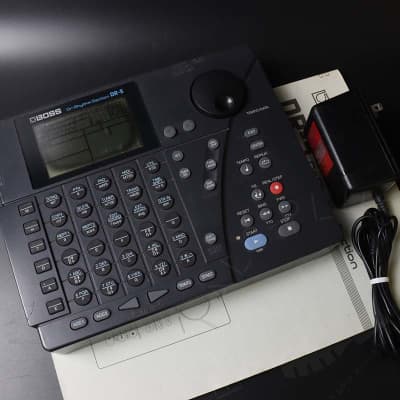

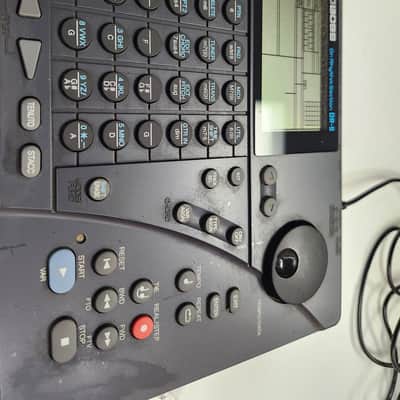

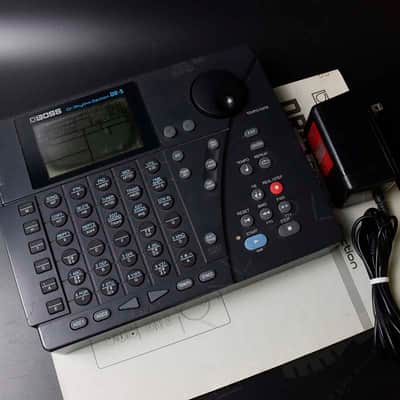

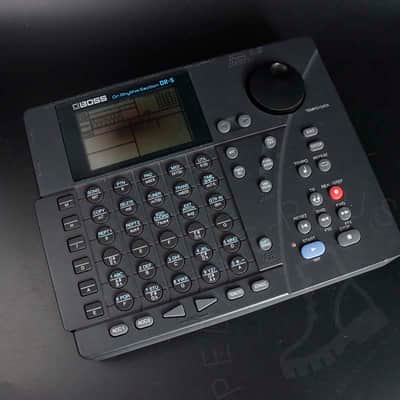

Boss DR-5 Dr. Rhythm 1990s - Black ($349)

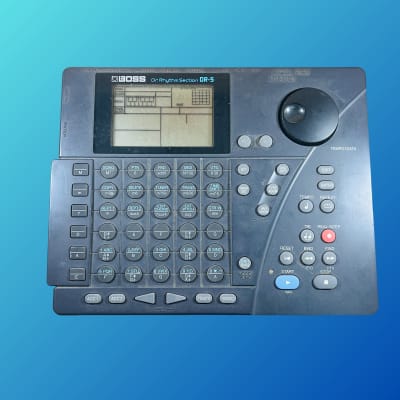

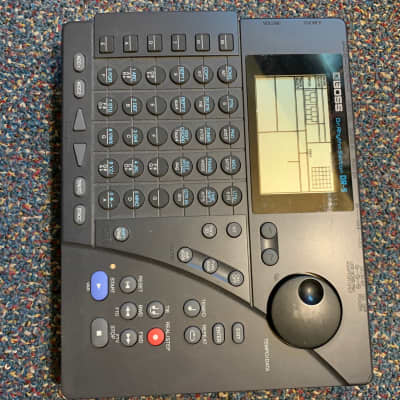

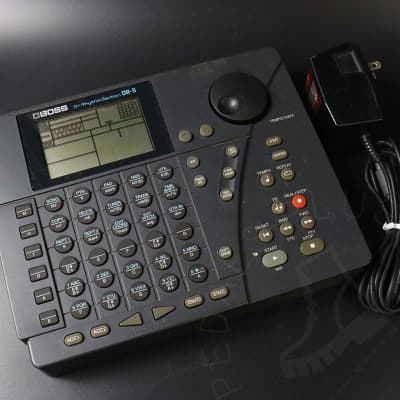

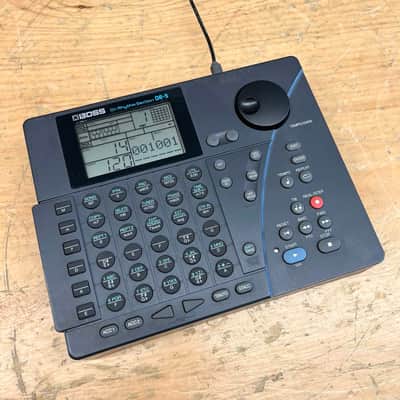

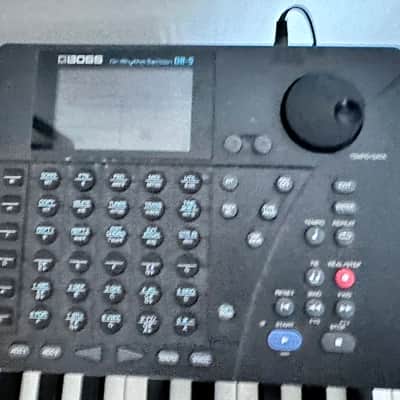

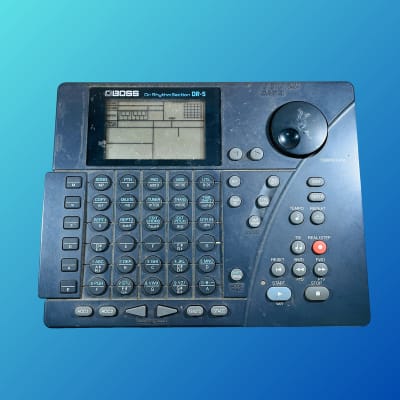

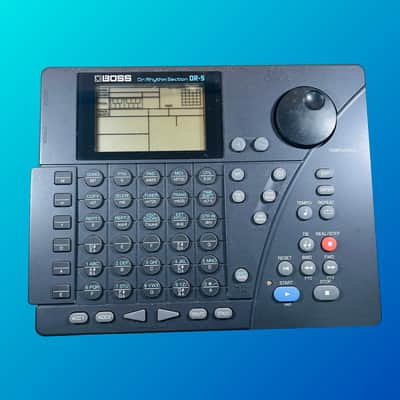

Boss DR-5 Dr. Rhythm Section Drum Machine ($175)

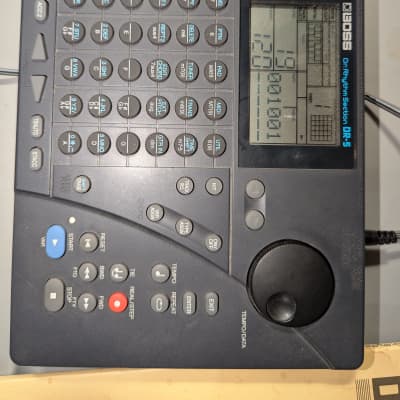

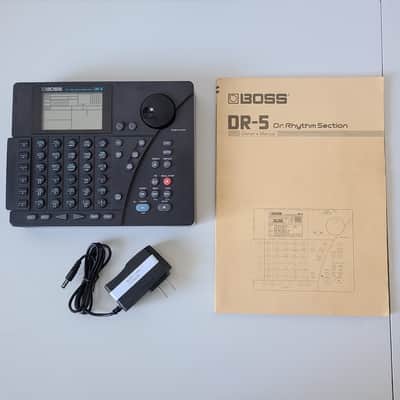

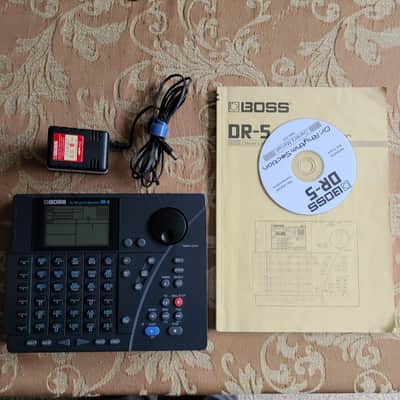

Boss DR-5 Dr. Rhythm with new internal battery and compatible power supply, cleaned ($135)

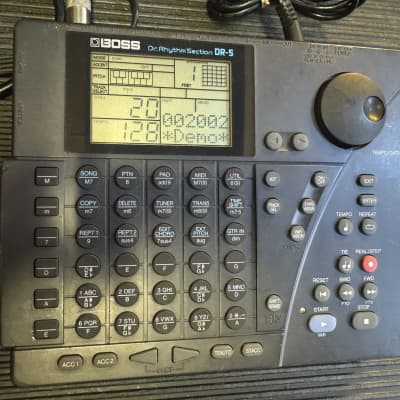

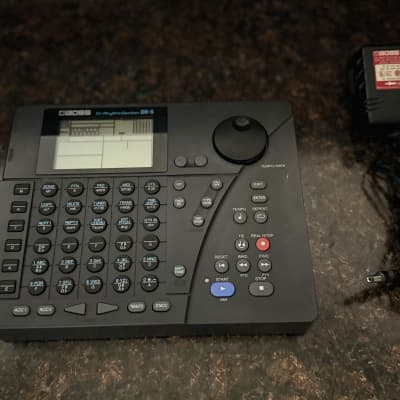

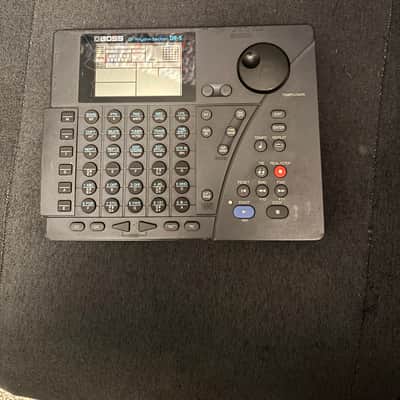

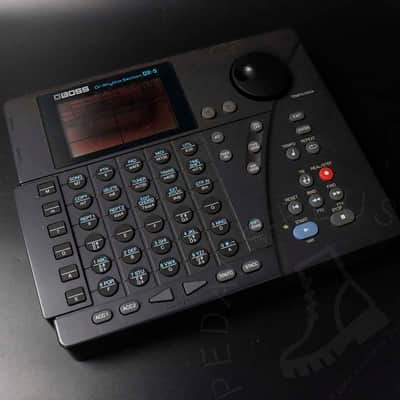

Boss DR-5 Dr. Rhythm 1990s - Black ($119)

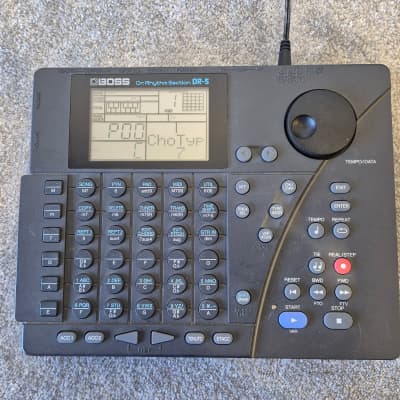

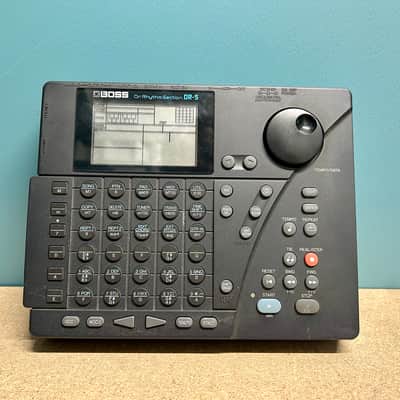

Boss DR-5 Dr. Rhythm Drum Machine ($149)

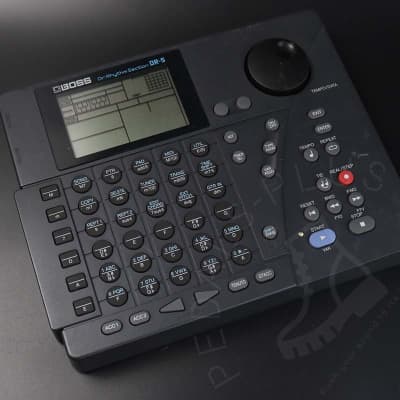

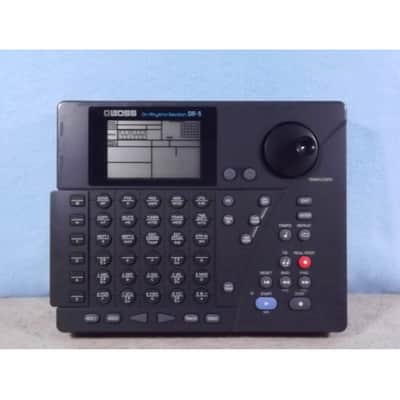

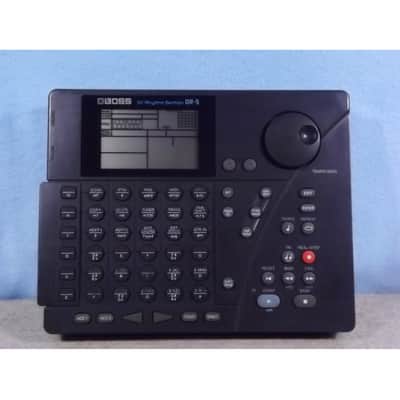

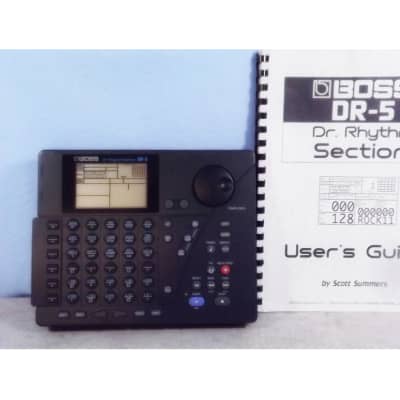

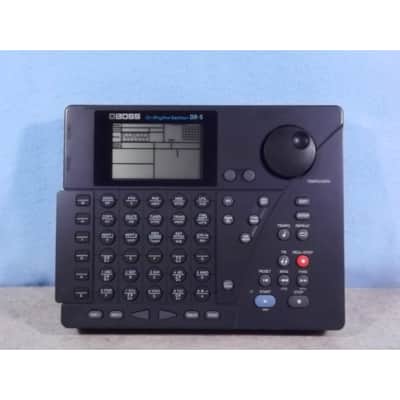

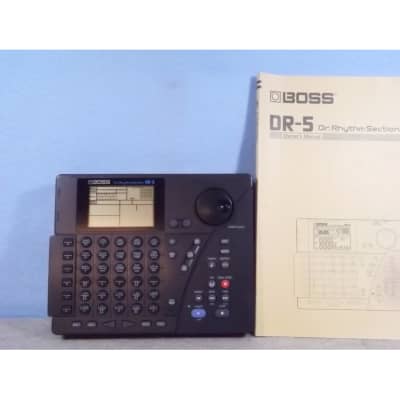

Boss DR-5 Drum Machine ($129.99)

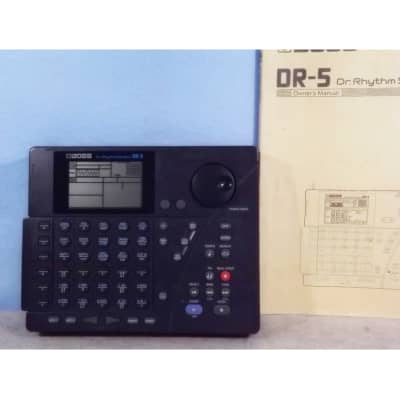

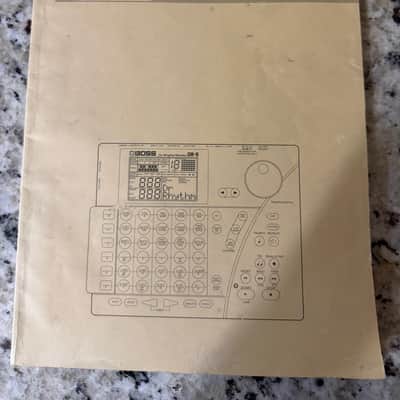

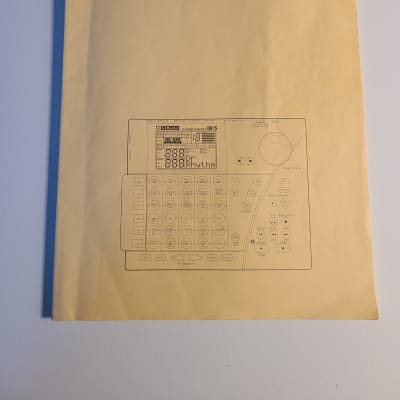

Boss DR-5 Original Owner Manual. Manual Only. ($28)

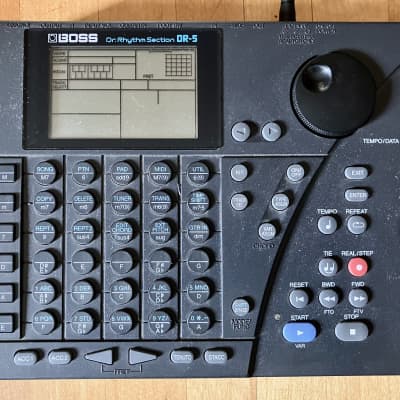

Boss DR-5 1999 - Matte Black ($90)

*New Battery BOSS DR-5 Dr. Rhythm ($150)

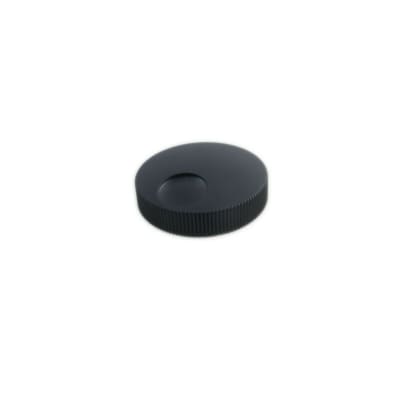

Boss- DR-5 Dr. Rhythm Section - Encoder knob ($10.90)

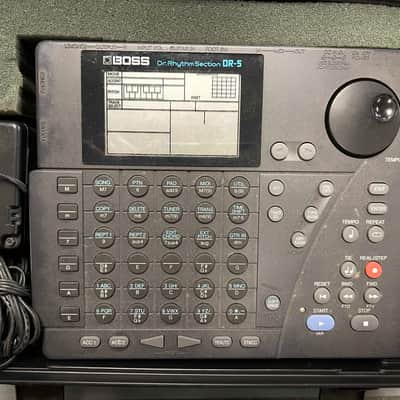

Boss Dr-5 Dr. Rhythm Section ($59.99)

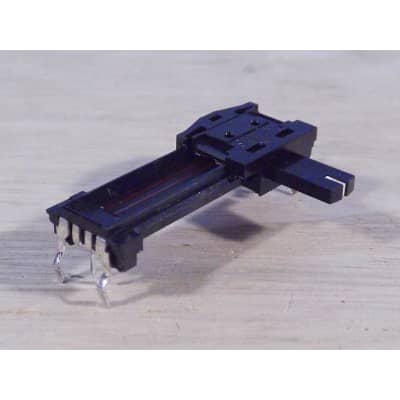

Boss DR-5 parts - Volume slider ($19.99)

Boss DR-5 parts - LCD ($29.99)

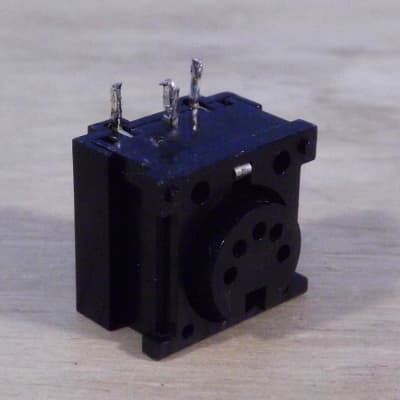

Boss DR-5 parts - MIDI jack ($5)

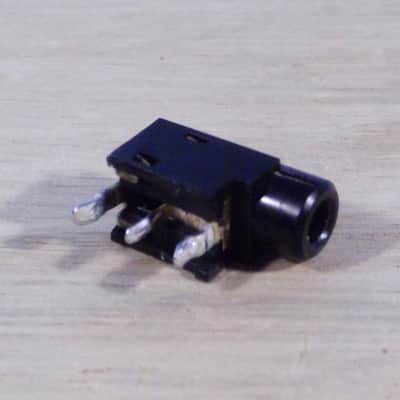

Boss DR-5 parts - Headphone jack 3.5mm ($10)

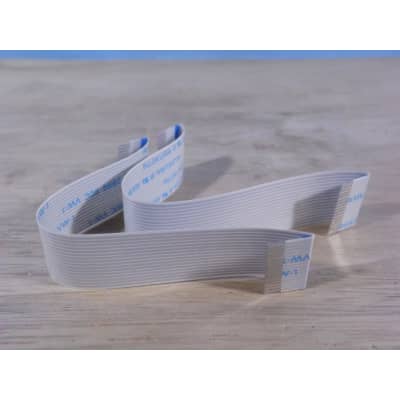

Boss DR-5 parts - Flat flex cables ($10)

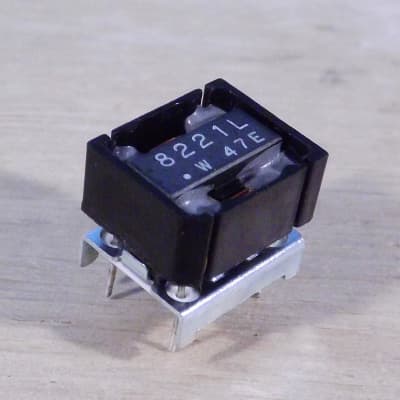

Boss DR-5 parts - Voltage converter module ($14.99)

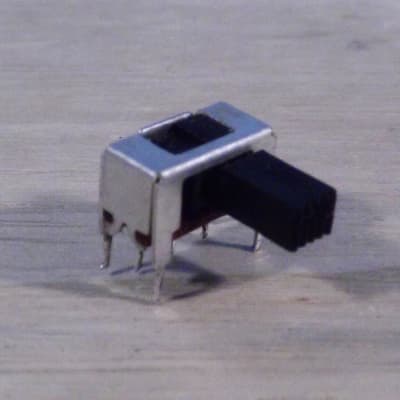

Boss DR-5 parts - Power Switch ($10)

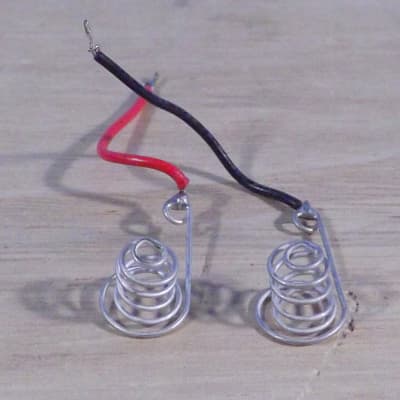

Boss DR-5 parts - battery contacts ($5)

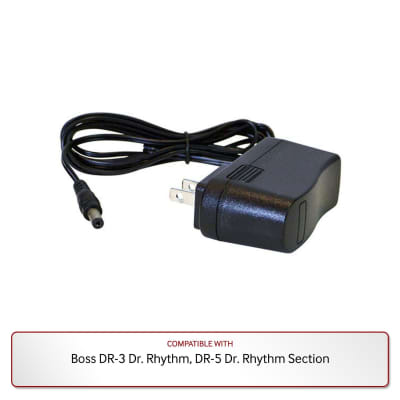

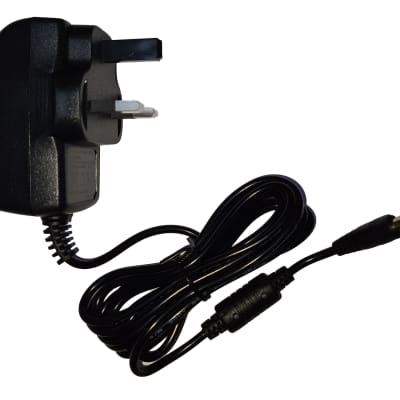

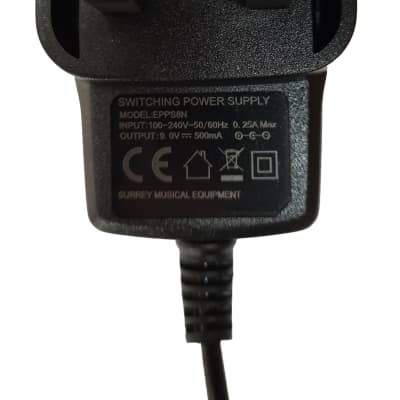

Power Supply Replacement for Boss Dr-5 Dr5 Adapter Uk 9V ($11.24)

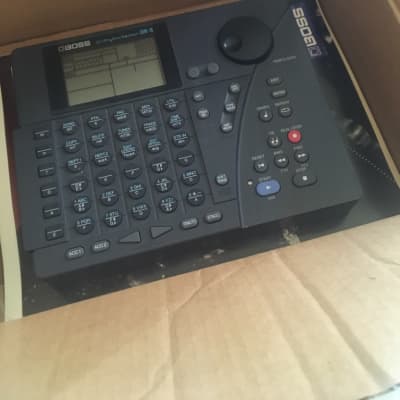

Boss DR5 Drum Machine (Unboxed) - 2 of 2 ($364.83)

Boss DR5 Drum Machine (Unboxed) - 1 of 2 ($364.83)

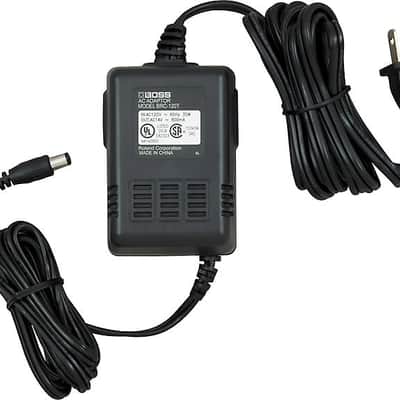

Boss BRC-120 AC Adapter for DR-770, SP-505, VF-1, GR-33, GR-20, JS-5, GT-3, GT-6, GT-6B, and GT-8 ($39.99)

LASE Replacement Boss BRC-120 Power Supply 14v 800mA BOSS for DR-770, SP-505,VF1 ( FX:BRC-120 ) ($29.99)

Boss DR-550 Dr. Rhythm (s/n CB52506, Made in Japan) ($110.72)

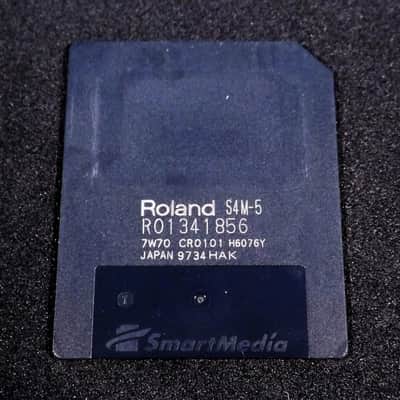

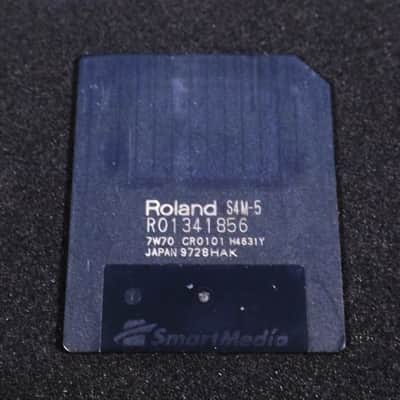

Boss SP-202 parts - 4Meg 5 Volt Smartmedia card ($174.99)

Boss SP-202 parts - 4Meg 5 Volt Smartmedia card ($174.99)

Boss Driver DB 5 Equalizer and Distortion ($634.89)

BOSS DB-90 Dr. Beat User-Friendly Quick Rhythm Customizing Portable Metronome with Large Backlit LCD and Onboard Microphone for Drummers ($159.99)

Boss DR-220A Dr. Rhythm 1988 s/n 916921 Japan ($163.82)

Roland Boss AC Adapter for DR-770/880, SP-505, VF-1, GR-33, GR-20, JS-5, GS-10, GT-3, GT-6, GT-6B, GT-8, GX-700 ($39.99)

BOSS SP-202 Dr. Sample Sampler Looper Drum Machine Roland sp202 ! ($280)

BOSS DR-880 Drumcomputer Guitar Peamp + Fast Neuwertig + 1.5Jahre Garantie ($536.35)

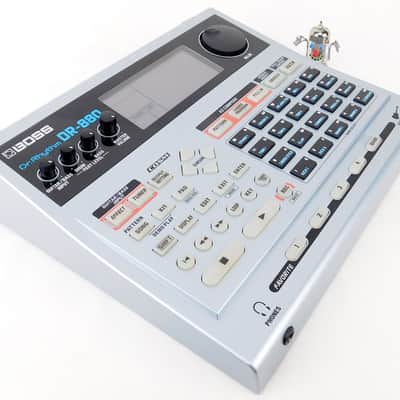

BOSS DR-880 Drumcomputer Guitar Peamp + Top Zustand + 1.5Jahre Garantie ($513.53)

Power Supply Replacement for Boss Dr-660 Ac Adapter Uk 12V ($14.62)

Power Supply Replacement for Boss Dr-3 Dr3 Adapter Uk 9V ($11.24)

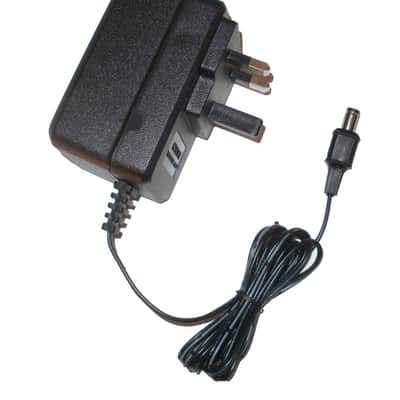

Power Supply Replacement for Boss Dr-880 Dr880 Adapter 14V ($33.73)

Power Supply Replacement for Boss Dr-770 Dr770 Adapter 14V ($33.73)

Power Supply Replacement for Boss Dr-220 Adapter Uk 9V ($11.24)

Power Supply Replacement for Boss Dr-550 Adapter Uk 9V ($11.24)

Power Supply Replacement for Boss Dr-110 Adapter Uk 9V ($11.24)

Power Supply Replacement for Boss Dr-670 Adapter Uk 9V ($11.24)

Power Supply Replacement for Boss Dr-550 Mkii Adapter Uk 9V ($11.24)

Power Supply Replacement for Boss Dr-202 Adapter Uk 9V ($11.24)

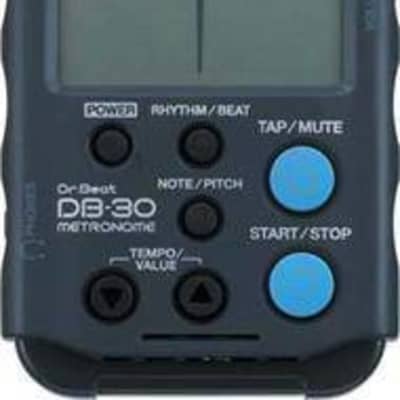

Boss Db 30 ($29.94)
