Drum Machines ⇝ Akai ⇝ Akai XR10

The XR10 is a sample-based drum machine powered by an 8-bit Z80 processor. It can play samples in reverse and they can be tuned in a two-octave range.

Specifications

Year Released: 1990

Number of Pads: 15

Polyphony: 8 notes

Preset Patterns: 450

User Patterns: 99

User Songs: 20

Tempo Range: 40 - 296 BPM

Sequencer Resolution: 96 PPQN

ROM Size: 65 samples at 16-bit resolution

Screen: 16 x 2 character LCD

Power Consumption: 12v, 200 mA

Weight: 1.7 kg

Dimensions: 350 mm x 241 mm x 68 mm

User Demo Videos

Rating

File Downloads

Akai XR10 Manual

Items for Sale on Reverb

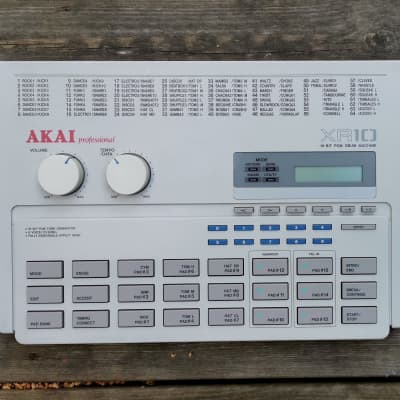

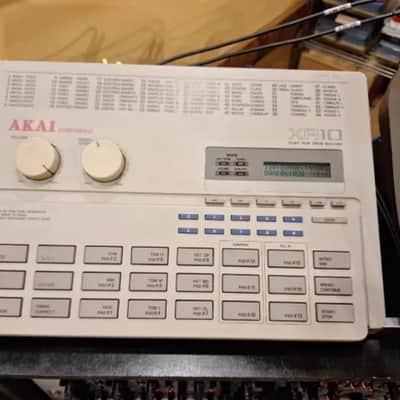

AKAI XR10 - RARE collectable Drum Machine (1987) “Wax Trax Icons” ($675.02)

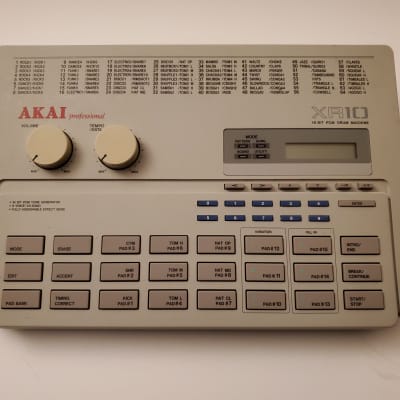

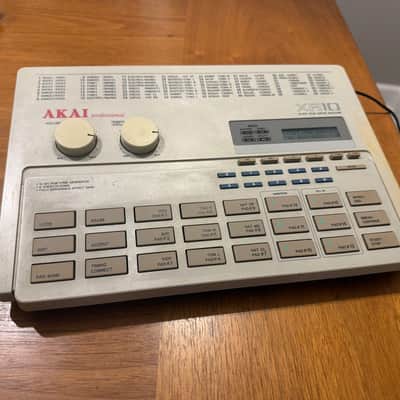

Akai XR10 1990 - Gray ($500)

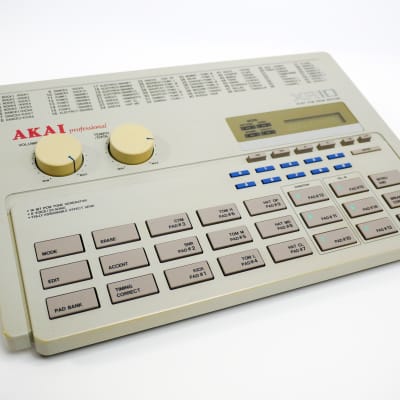

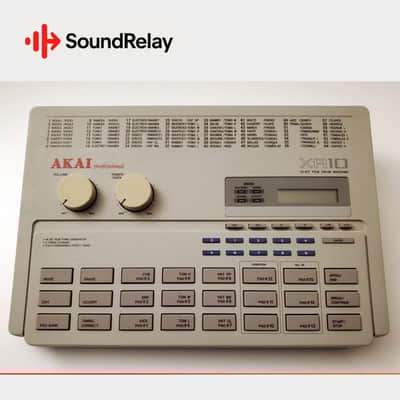

Akai XR10 - Drum Machine - PSU & Manual Included - Tested ($644.50)

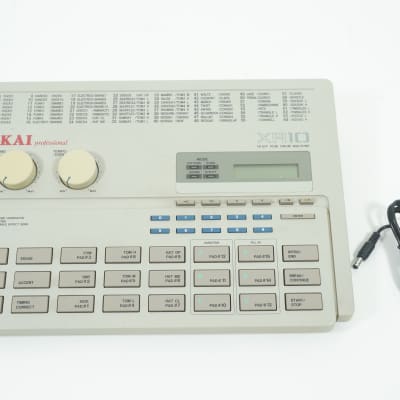

Akai XR10 Drum Machine ($550)

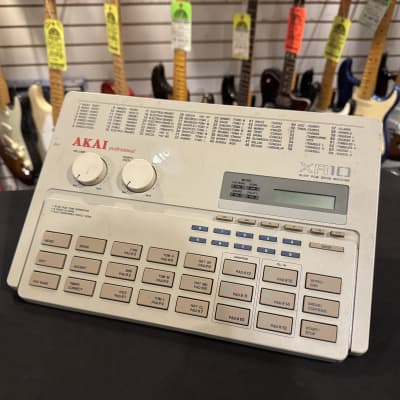

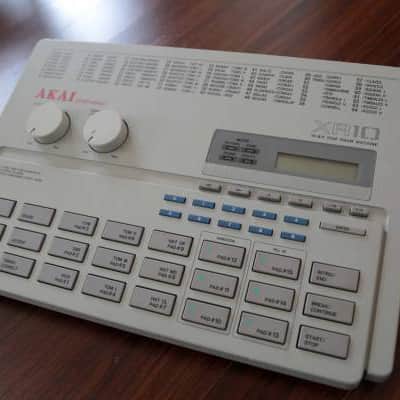

Very Rare- Akai XR10- Clean - EBM Industrial Darkwave Gesaffelstein Style Drum Machine ($2,750)

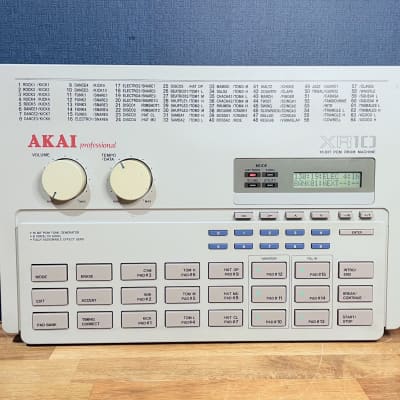

AKAI XR-10 ($392.06)

27C4096 to MB834200 / 27C4100 MaskROM two-way adapter to read and write EPROMs for AKAI XR-10 ($46.96)

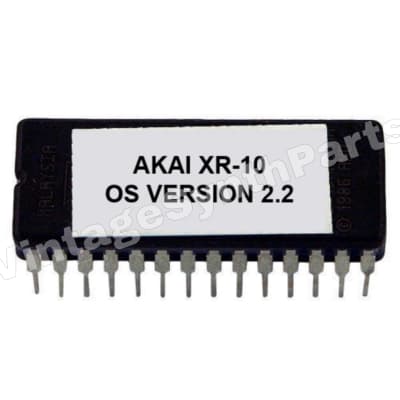

Akai XR-10 Eprom with firmware 2.2 Operating System Rom Vintage Sampler Update ($23.42)

Pair MPF TSPO48 to DIP40 MB834200 / 27C4100 16-bit adapter with the original Akai XR-10 wave samples. ($140.87)

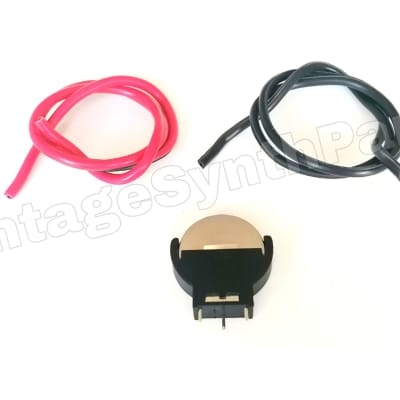

AKAI ax-60 ax-73 ax-80 xr-10 - Battery Replacement repair fix ($9.33)

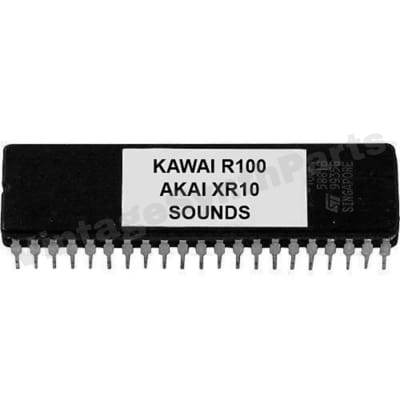

AKAI XR-10 XR10 Sounds Eprom for KAWAI R100 and R50 drum machine R-100 R-50 ($26.94)
