Digital Pianos ⇝ Yamaha ⇝ Yamaha DGX-505

The DGX-505 is a portable digital grand piano from the mid-2000s.

Specifications

Year Released: 2004

Keyboard: 88 keys with velocity

Polyphony: 32 notes

Preset Patches: 482

Preset Drum Kits: 12

Preset Songs: 30

User Songs: 5

Preset Styles/Rhythms: 135

Effects: reverb (9 types), chorus (4 types), harmony (26 types)

Screen: 320 x 240 pixel backlit LCD

Power Consumption: 22 watts, 12V DC PA-5D power adaptor

Weight: 13.5 kg

Dimensions: 1178 mm x 412 mm x 173 mm

This keyboard is MIDI-enabled.

MIDI Connections: USB MIDI support only.

USB Connection: USB Type B

This digital piano has built-in 6-watt 2 x 12 cm + 2 x 3 cm speaker(s).

Batteries: 6 x D

Rating

File Downloads

Yamaha DGX-305 and DGX-505 Manual

Items for Sale on Reverb

YAMAHA PSR/DGX Series Original Battery Cover-Door. Good Condition ! ($9.99)

YAMAHA DGX-520 DGX-505 DGX-305 Keyboard Part: White Keys [D-F-A] 3-Key Set ($13.72)

YAMAHA DGX-520 DGX-505 DGX-305 Keyboard Part: Black Keys [Flat/Sharp] 5-Key Set ($11.48)

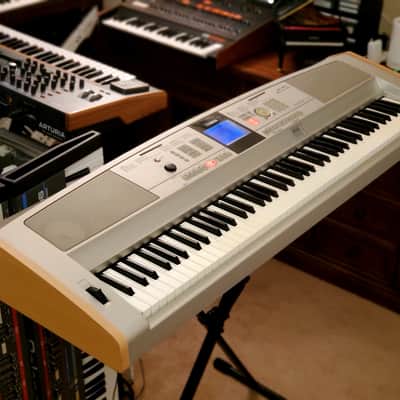

MUST SEE!!! YAMAHA DGX 505 SEMI-WEIGHTED 88-KEY DIGITAL PIANO IN AMAZING CONDITION! ($395)

YAMAHA DGX-305 DGX-505 Part: Volume Knob Potentiometer Pot PCB Board [X5098] ($11.14)

YAMAHA DGX-305 DGX-505 Keyboard Part: USB Sustain Input PCB Board [X5096] ($12.26)

YAMAHA DGX-305 DGX-505 Part: Voice Style Button Conductive Pads w/Board [X5099] ($18.98)

YAMAHA DGX-305 DGX-505 Part: Function Demo Button Pad Circuit Board [X5098] ($18.98)

YAMAHA DGX-305 DGX-505 Part: Smart Media Memory Card Reader Assembly [X4145] ($12.26)

YAMAHA DGX-305 DGX-505 Keyboard Part Power ON/OFF Switch w/Red Cap Cover [X5098] ($12.26)

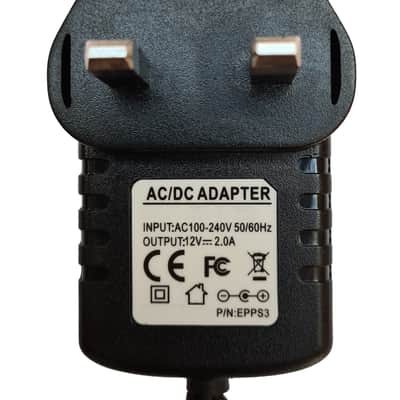

Power Supply Replacement for YAMAHA DGX-505 KEYBOARD ADAPTER UK 12V ($11.57)

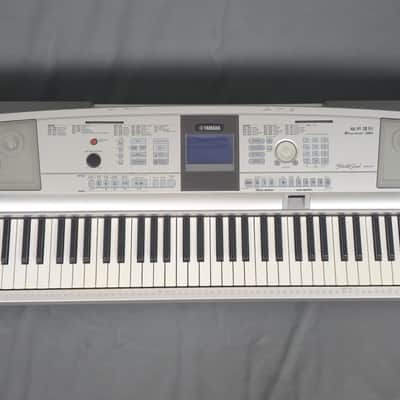

Yamaha DGX 505 Digital Piano ($553.25)

Yamaha 8-Key Rubber Contact Strip for DGX-220, DGX-300, DGX-305, DGX-505 ($24.99)

Yamaha Power Supply for DGX-300, DGX-305, DGX-500, DGX-505, DGX-520, DGX-530 ($49.99)

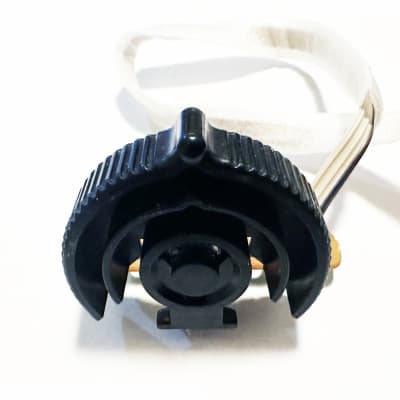

Yamaha Data Entry Rotary Encoder for DGX-305, DGX-505, DGX-520, DGX-530, DGX-620 ($24.99)
