Digital Pianos ⇝ Casio ⇝ Casio PX-560M

Specifications

Keyboard: 88 keys with velocity

Polyphony: 256 notes

Preset Patches: 632

Preset Drum Kits: 18

Preset Songs: 6

Preset Styles/Rhythms: 220

User Styles/Rhythms: 30

Effects: reverb (17 editable) , chorus (16 editable), delay (6 editable), brilliance (4 bands parametric EQ), DSP (parameter editable DSP)

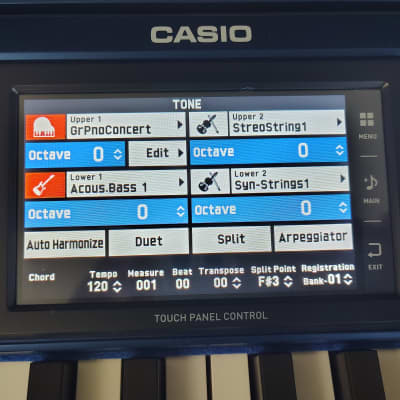

Screen: 5.0-inch 528 x 320 pixel TFT Color LCD

Power Consumption: AD-A12150LW AC adaptor (12V DC)

Weight: 12.0 kg, 22.0 kg with optional CS-67 stand

Dimensions: 1322 mm x 293 mm x 147 mm, 1322 mm x 293 mm x 773 mm with optional CS-67 stand

This keyboard is MIDI-enabled.

MIDI Connections: Standard 5-Pin MIDI in, out, and thru connections.

This digital piano has built-in 8-watt 12 cm x 2 and 5 cm x 2 speaker(s).

Rating

File Downloads

Casio PX-560M Manual

Casio PX-360M and PX-560M MIDI Implementation

Casio PX-560M Appendix
