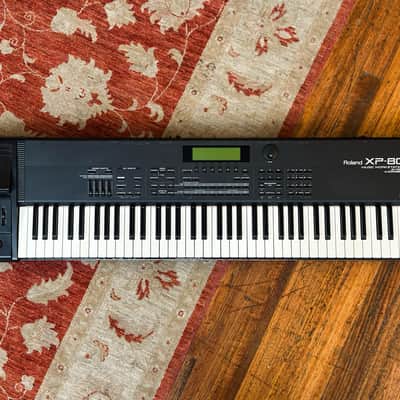

SynthsRoland ⇝ Roland XP-80

The XP-80 can be expanded with up to 4 SR-JV80 series expansion boards. It is also available in 61-key form as the XP-60.

Specifications

Year Released: 1998

Keyboard: 76 keys with velocity and aftertouch

Polyphony: 64 notes

Multitimbral: 16 parts

Preset Patches: 512

User Patches: 128

Preset Performances: 64

User Performances: 32

Preset Drum Kits: 8

User Drum Kits: 2

ROM: 8MB (448 16-bit PCM waveforms)

Sequencer Resolution: 96 PPQN

Effects: 40 multi-effects plus reverb and chorus

Arpeggiator: 33 styles

Screen: 320 x 80 pixel backlit LCD

Power Consumption: 20 watts

Dimensions: 1238 mm x 349 mm x 107 mm

Weight: 12.9 kg

Sequencer: 60,000 notes, 100 patterns, 1 song of up to 9998 measures.

User Demo Videos

Rating


4.3
(7 votes)

File Downloads

Roland XP-60 and XP-80 Manual

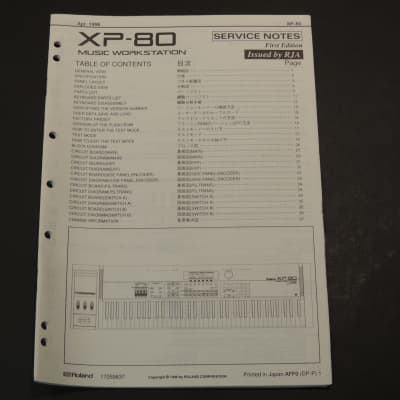

Roland XP-80 Service Notes

Items for Sale on Reverb

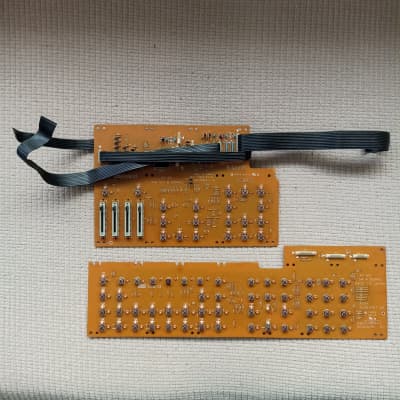

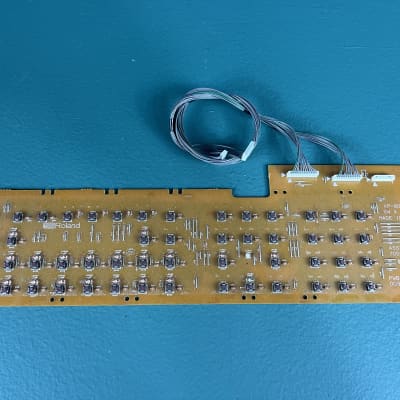

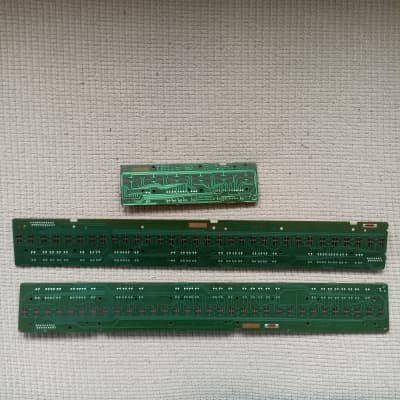

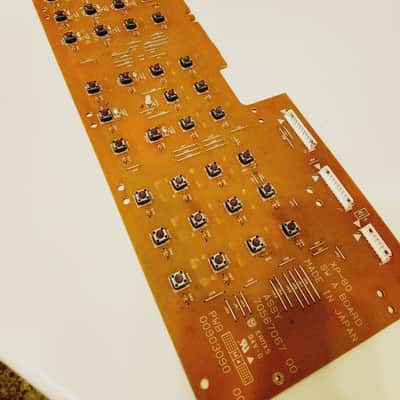

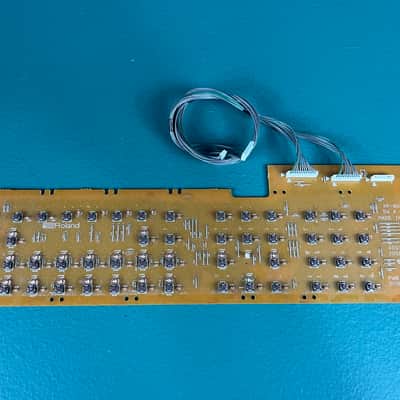

Roland XP-80 SWITCH A BOARD ASSY 70567067Roland XP-80 SWITCH A BOARD ASSY 70567067 ($62.10)

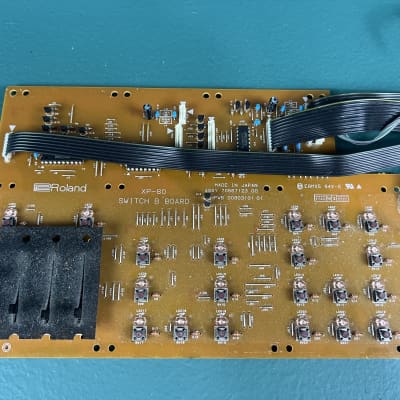

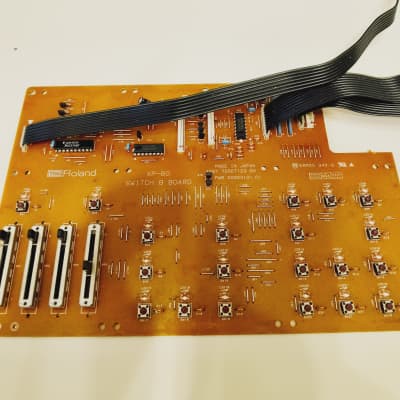

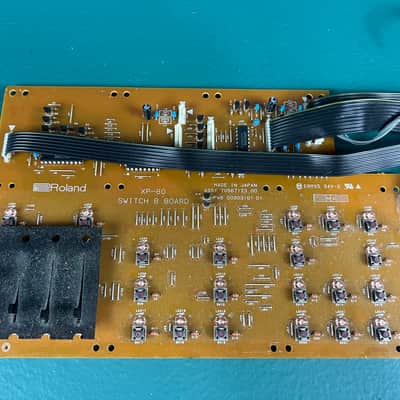

Roland XP-80 SWITCH B BOARD ASSY 70567123Roland XP-80 SWITCH B BOARD ASSY 70567123 ($62.10)

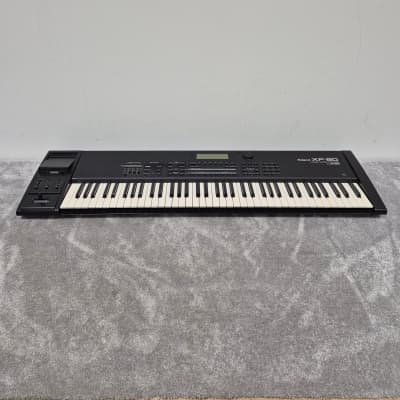

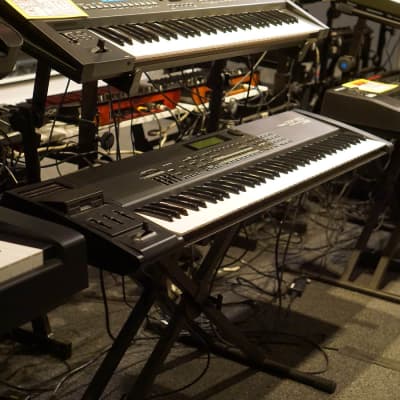

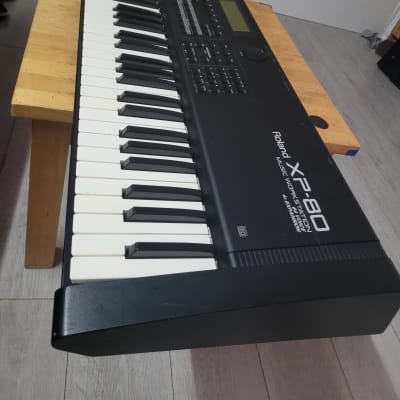

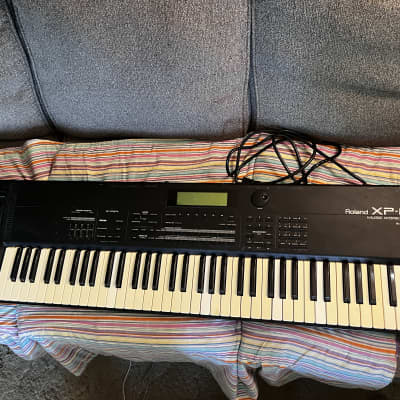

Roland XP-80 76-Key 64-Voice Music Workstation Keyboard SynthesizerRoland XP-80 76-Key 64-Voice Music Workstation Keyboard Synthesizer ($880.66)

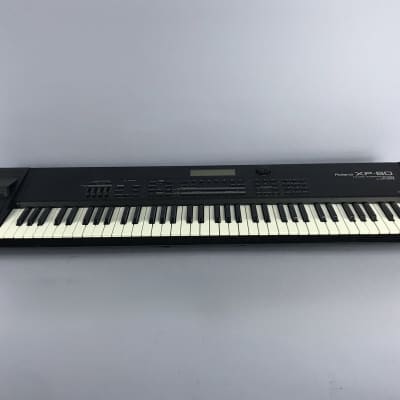

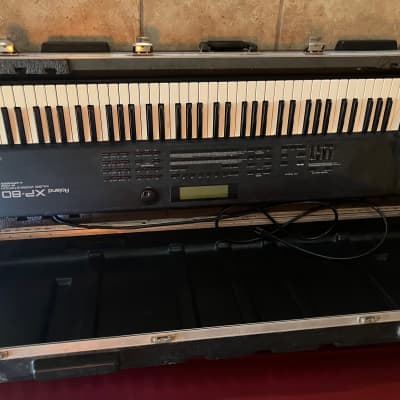

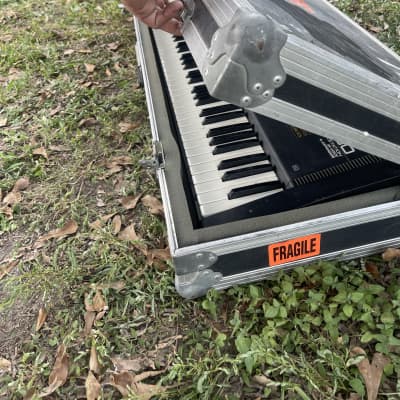

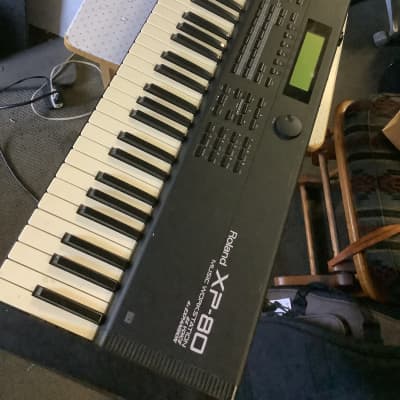

Roland XP-80 Keyboard WorkstationRoland XP-80 Keyboard Workstation ($1,299)

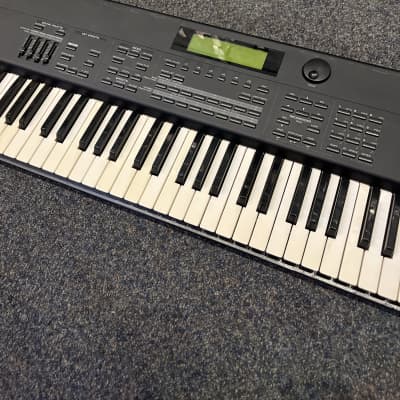

Roland XP-80 workstation 76 semi-weighted keyboard synthesizer - 1996 vintage!Roland XP-80 workstation 76 semi-weighted keyboard synthesizer - 1996 vintage! ($1,499)

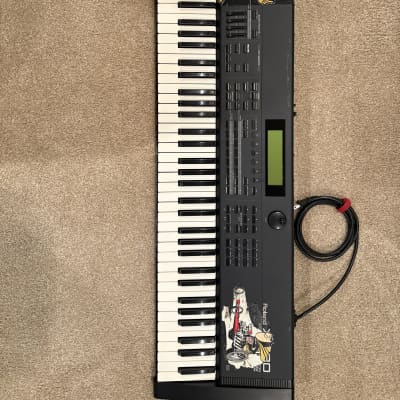

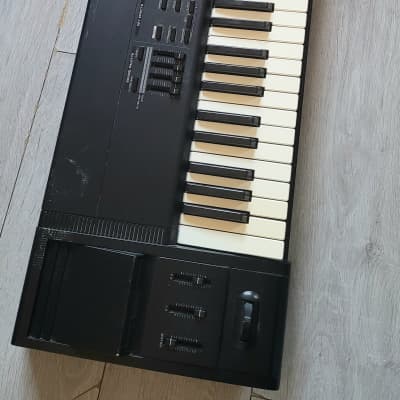

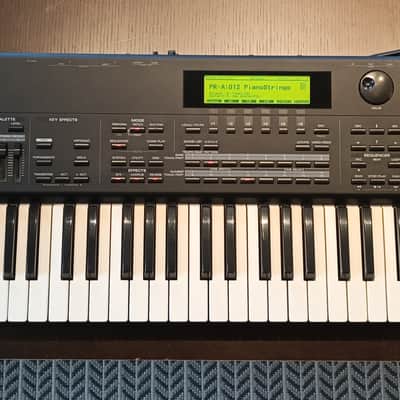

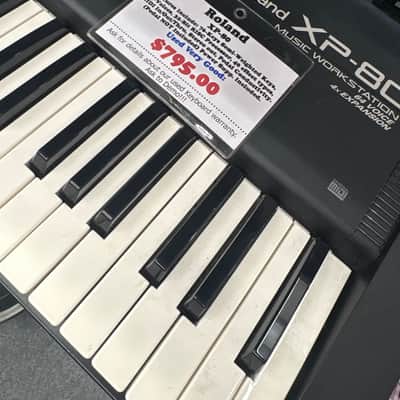

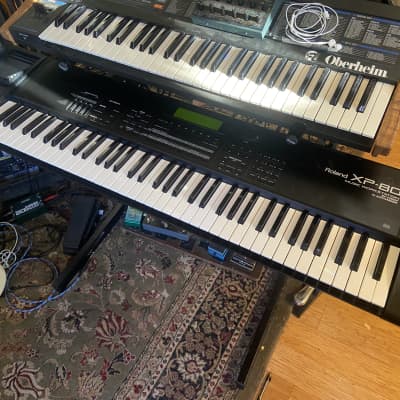

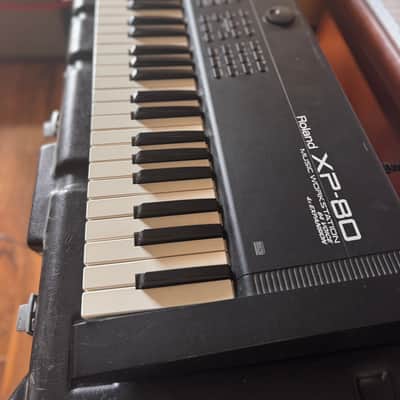

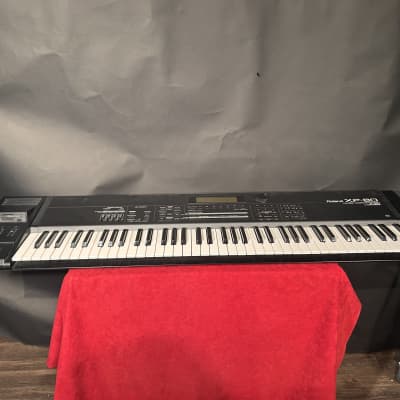

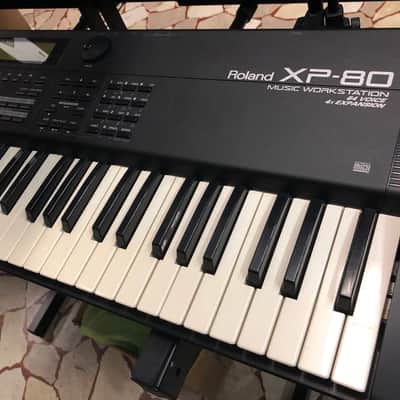

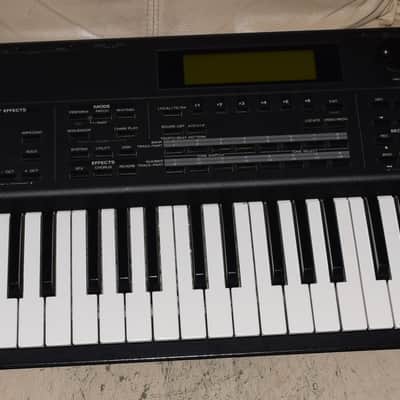

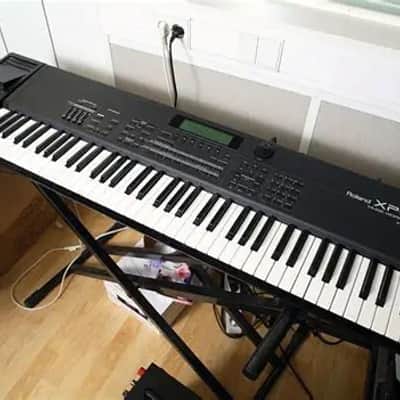

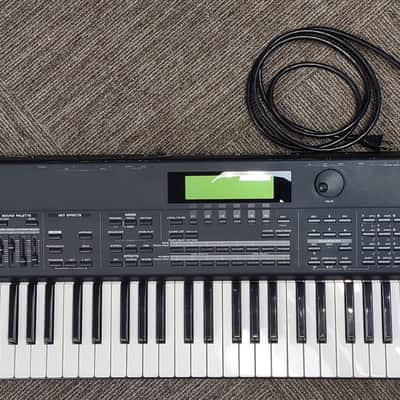

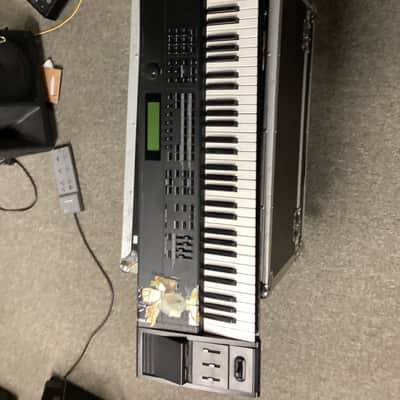

Roland XP-80 76-Key 64-Voice Music Workstation Keyboard 1999 - 2004 - BlackRoland XP-80 76-Key 64-Voice Music Workstation Keyboard 1999 - 2004 - Black ($677.43)

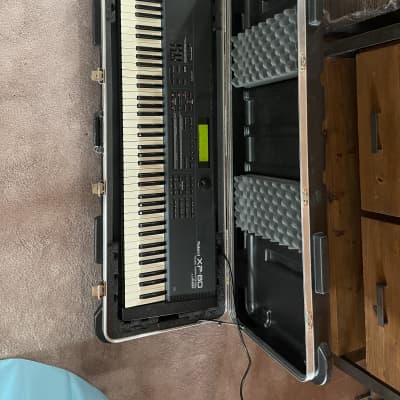

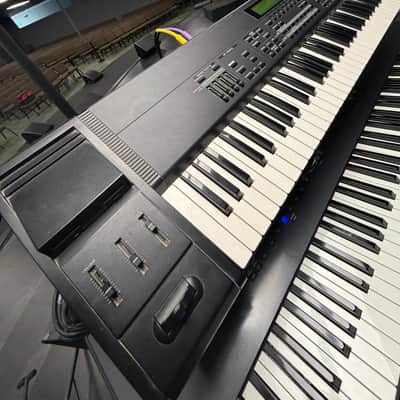

Roland XP-80 76-Key 64-Voice Music Workstation Keyboard 1999 - 2004 - BlackRoland XP-80 76-Key 64-Voice Music Workstation Keyboard 1999 - 2004 - Black ($1,200)

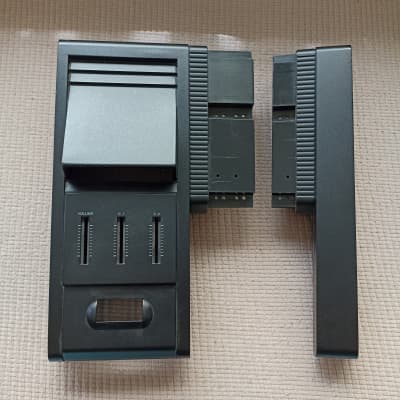

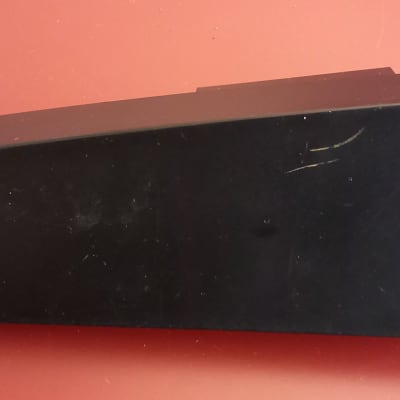

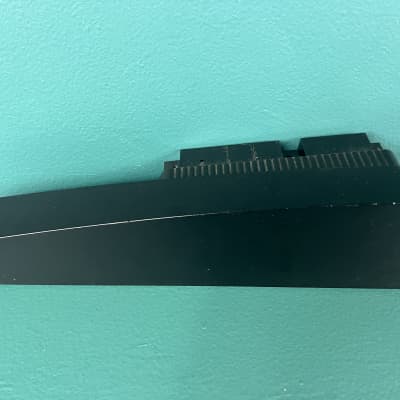

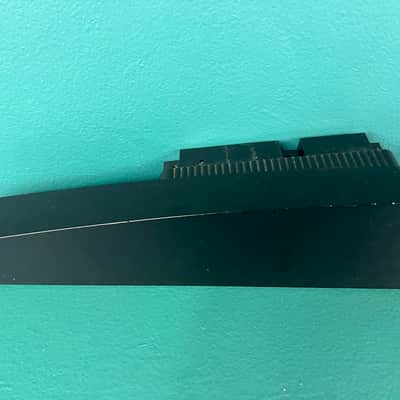

Roland XP-80 Main Enclosure with End CapsRoland XP-80 Main Enclosure with End Caps ($66.61)

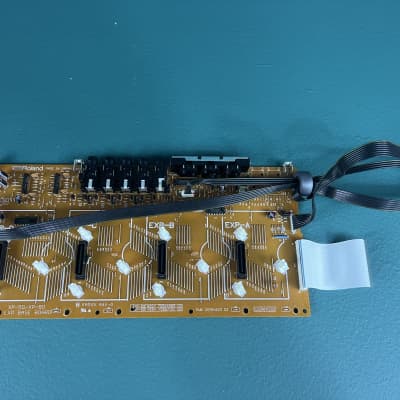

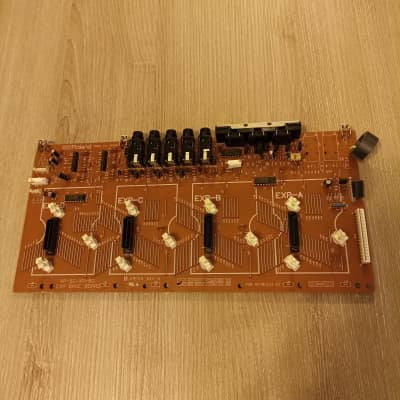

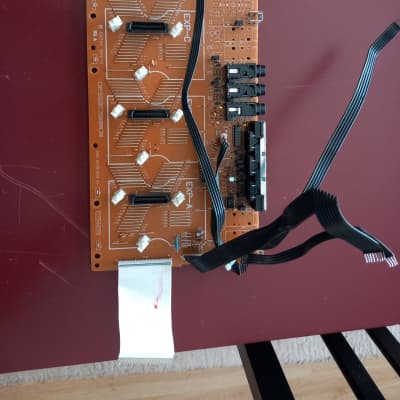

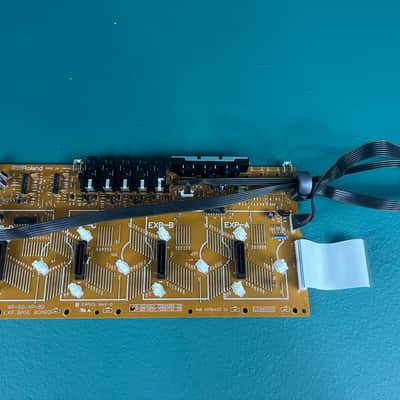

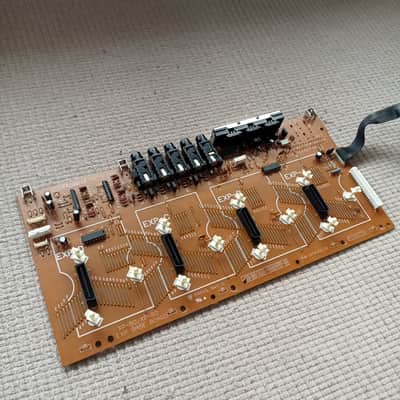

Roland XP-80 Jack/Expansion BASE BOARD ASSY 756710100Roland XP-80 Jack/Expansion BASE BOARD ASSY 756710100 ($56.45)

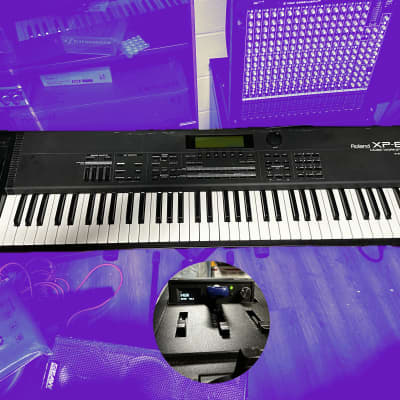

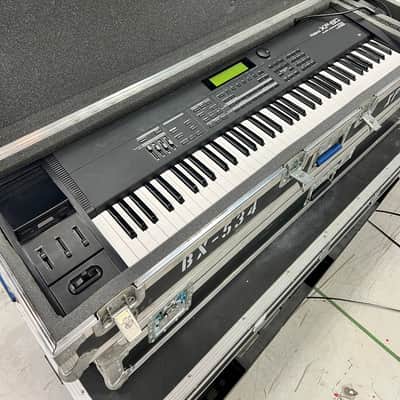

Roland XP-80 76-Key 64-Voice Music Workstation Keyboard 1999 - 2004 - BlackRoland XP-80 76-Key 64-Voice Music Workstation Keyboard 1999 - 2004 - Black ($999.99)

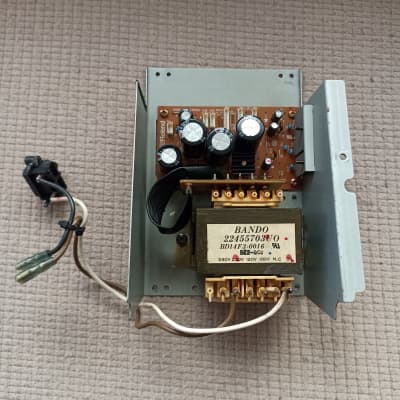

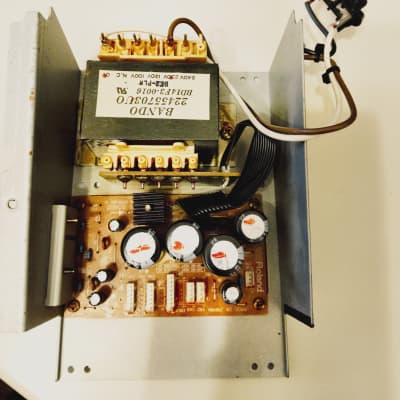

Roland Power supply assembly for XP-80Roland Power supply assembly for XP-80 ($111.78)

Roland XP-80 Music Workstation 64 Voice 4x Expansion in Very Good Condition.Roland XP-80 Music Workstation 64 Voice 4x Expansion in Very Good Condition. ($950)

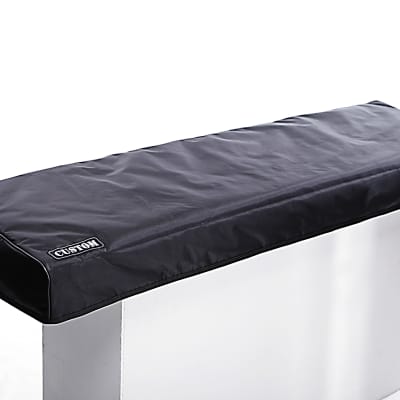

Custom padded cover for Roland XP-80 KeyboardCustom padded cover for Roland XP-80 Keyboard ($49.99)

Roland XP-80 76-Key 64-Voice Music Workstation xp80 xp 80Roland XP-80 76-Key 64-Voice Music Workstation xp80 xp 80 ($890.71)

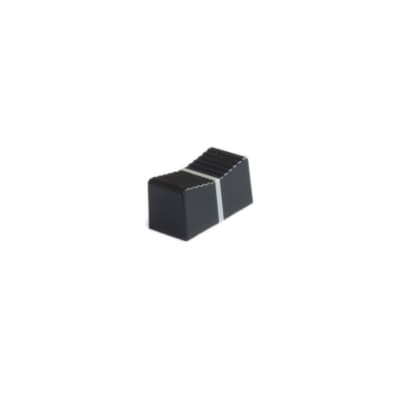

ROLAND Fantom G-6, XP-50, JV-1000 Original Black Slider Knob Cap.ROLAND Fantom G-6, XP-50, JV-1000 Original Black Slider Knob Cap. ($9.99)

Roland - XP-30, XP-50, XP-60, XP-80 - Slider knobRoland - XP-30, XP-50, XP-60, XP-80 - Slider knob ($14.99)

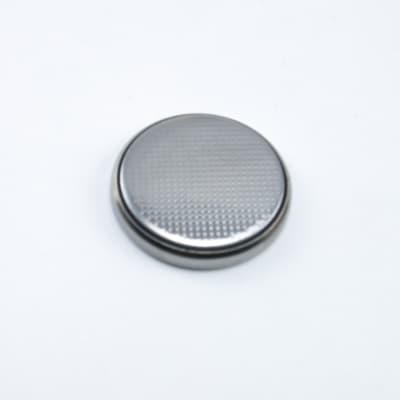

Roland - JV-1080/2080 , JP-8000 , XP-10 XP-30 XP-50 XP-60 XP-80 - batteryRoland - JV-1080/2080 , JP-8000 , XP-10 XP-30 XP-50 XP-60 XP-80 - battery ($5.59)

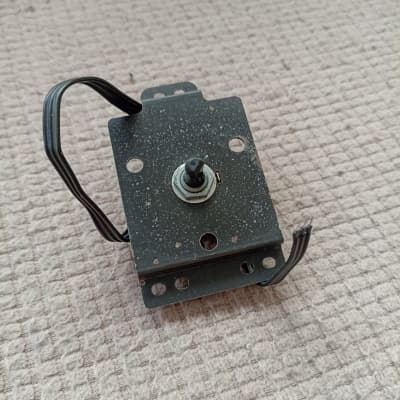

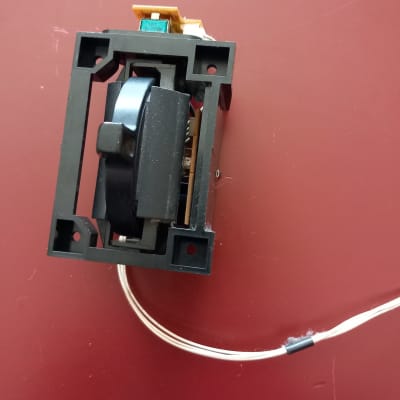

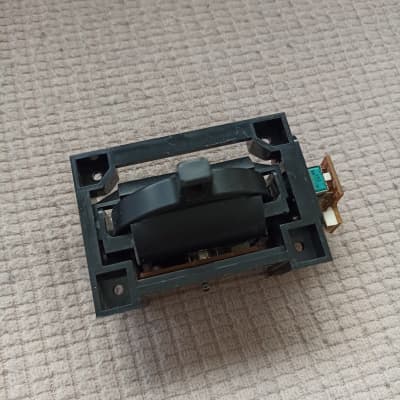

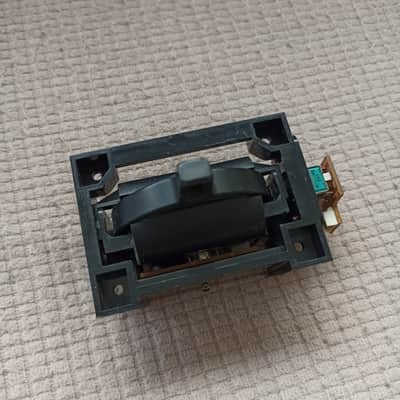

Roland Bender Assembly with Frame for Roland XP-80Roland Bender Assembly with Frame for Roland XP-80 ($45.16)

Roland -  JV-1080/2080 , JP-8000 , XP-10 XP-30 XP-50 XP-60 XP-80 - batteryRoland - JV-1080/2080 , JP-8000 , XP-10 XP-30 XP-50 XP-60 XP-80 - battery ($3.20)

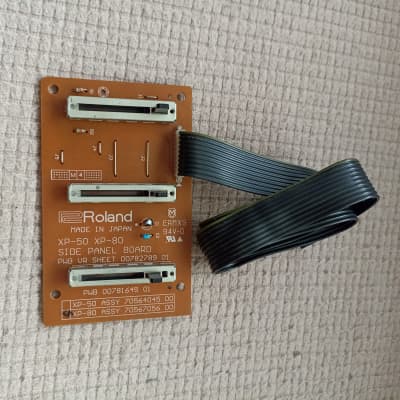

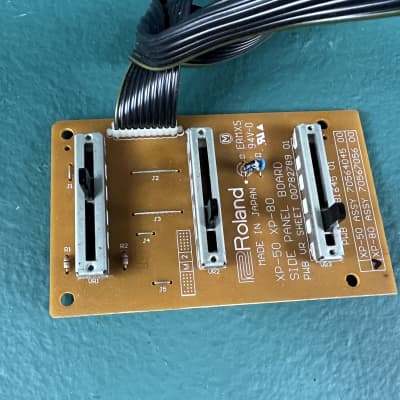

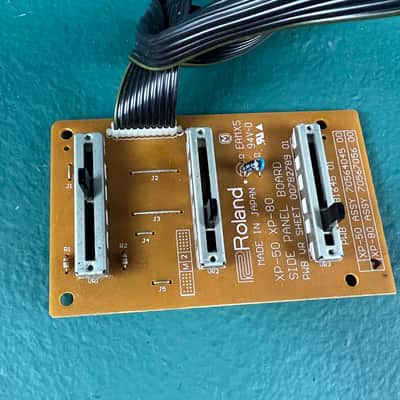

Roland Slider Board for Roland XP-80Roland Slider Board for Roland XP-80 ($50.81)

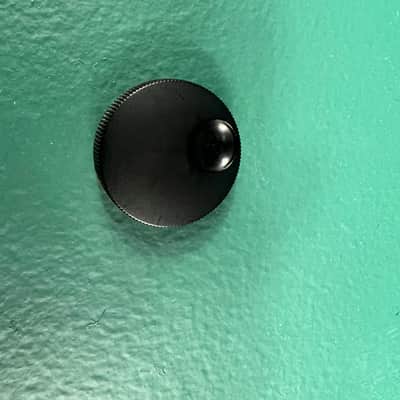

Roland Encoder Assembly with Data Dial for Roland XP-80Roland Encoder Assembly with Data Dial for Roland XP-80 ($62.10)

ROLAND XP-50 Synthesizer Original Black Keyboard Key.ROLAND XP-50 Synthesizer Original Black Keyboard Key. ($7.95)

ROLAND XP-50 Synthesizer Original White Keyboard Key.ROLAND XP-50 Synthesizer Original White Keyboard Key. ($7.95)

ROLAND XP-60 OR XP-80 - Full set of 71 tact switches - New XP60 XP80 panel switchROLAND XP-60 OR XP-80 - Full set of 71 tact switches - New XP60 XP80 panel switch ($25.35)

Roland 10x Black Keys for XP-50 XP-60 XP-80 Etc. SynthesizerRoland 10x Black Keys for XP-50 XP-60 XP-80 Etc. Synthesizer ($22)

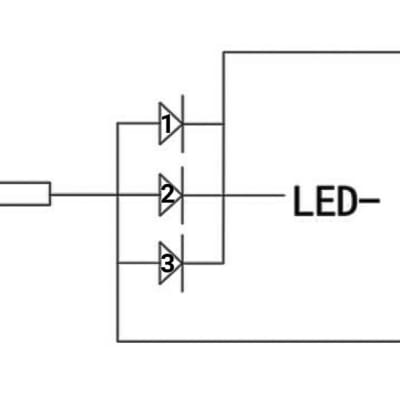

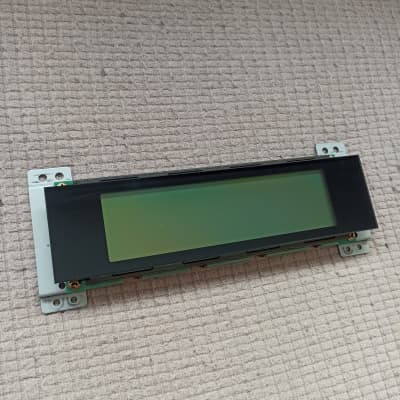

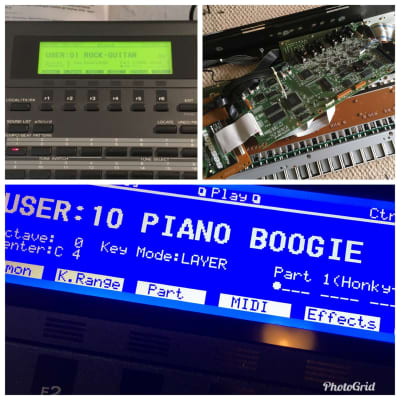

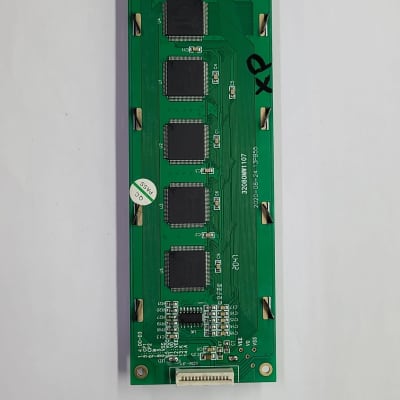

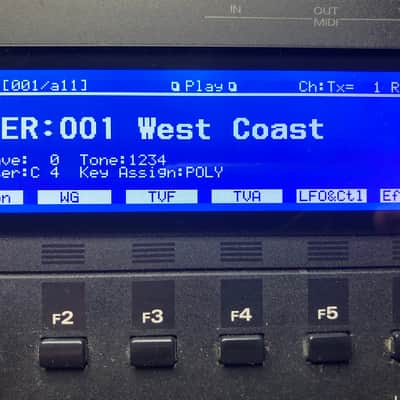

Graphic Display Upgrade - Roland XP-80 LED Graphic Display UpgradeGraphic Display Upgrade - Roland XP-80 LED Graphic Display Upgrade ($171.18)

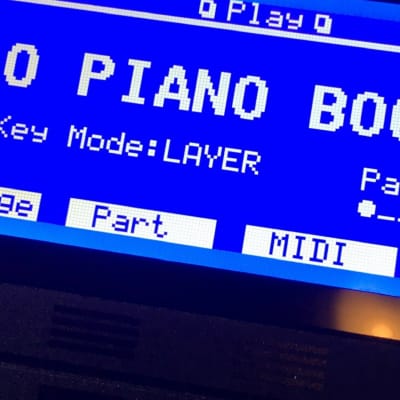

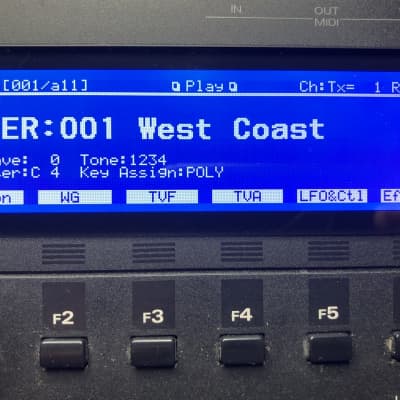

Graphic Display Upgrade - Roland XP-80 Custom (Negative) Blue LED Graphic Display !Graphic Display Upgrade - Roland XP-80 Custom (Negative) Blue LED Graphic Display ! ($171.18)

Roland XP-80 (NEW) LED Graphic Display !Roland XP-80 (NEW) LED Graphic Display ! ($171.18)

90' Keyboard PARTS ROLAND JV80 JV30 50 35 XP50 60 Xp-80 SLIDER KNOB button90' Keyboard PARTS ROLAND JV80 JV30 50 35 XP50 60 Xp-80 SLIDER KNOB button ($6.66)

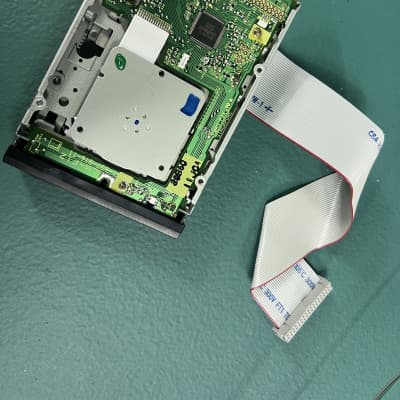

Panasonic Floppy Drive for Roland XP-80Panasonic Floppy Drive for Roland XP-80 ($62.10)

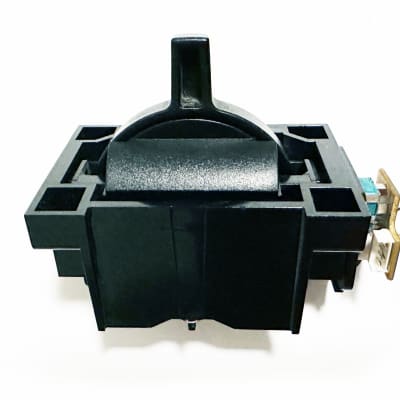

Roland Bender Unit for XP-50 XP-60 XP-80 XP-10 and Fantom FA-76Roland Bender Unit for XP-50 XP-60 XP-80 XP-10 and Fantom FA-76 ($59.95)

Roland XP-30/50/60/80 13-Note Rubber Keyboard Contact Strip....Roland XP-30/50/60/80 13-Note Rubber Keyboard Contact Strip.... ($14.99)

Roland XP-30/50/60/80 12-Note Rubber Keyboard Contact Strip...Roland XP-30/50/60/80 12-Note Rubber Keyboard Contact Strip... ($14.99)

Roland XP-60/80 Factory Demo DiskRoland XP-60/80 Factory Demo Disk ($5.95)

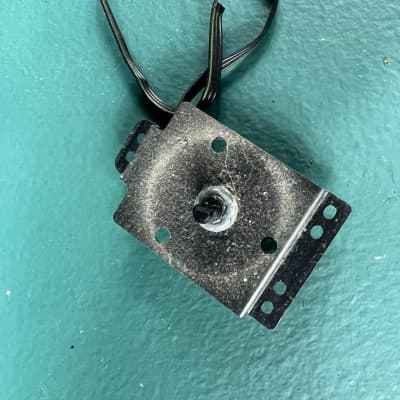

Roland - XP - 10/50/60/80 - Pitch Bender Rotary PotentiometerRoland - XP - 10/50/60/80 - Pitch Bender Rotary Potentiometer ($9.90)

10 x  Front panel pushbutton tact switch for Roland XP 10 / 30 / 50 / 60 / 8010 x Front panel pushbutton tact switch for Roland XP 10 / 30 / 50 / 60 / 80 ($7.06)

Roland - XP - 10/50/60/80 - New Rotary PotentiometerRoland - XP - 10/50/60/80 - New Rotary Potentiometer ($9.50)

Roland Dance Kit Software For XP-60 / 80 Music Workstation SynthRoland Dance Kit Software For XP-60 / 80 Music Workstation Synth ($5.95)

Roland XP-60/80 Video TutorialRoland XP-60/80 Video Tutorial ($15.50)

Roland LOT 5 Roland black keys XP-50 XP XP60 XP80 JW JV80 JV 90 JX1 JV30 and moreRoland LOT 5 Roland black keys XP-50 XP XP60 XP80 JW JV80 JV 90 JX1 JV30 and more ($10.16)

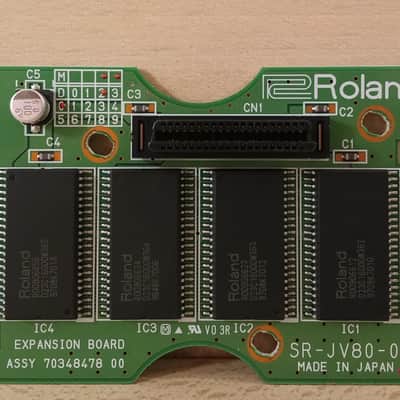

Mint & Tested 100% Working! Roland SR-JV80-19 HOUSE Collection Expansion Board Sound ROM Card SRJV80 SRJV JV-80 19 HOUSE for XP Keyboards / Synths & JV1080, JV2080, JV1010, XV3080, XV5080 Rack Synth Synthesizer. Minty Condition! SAFE Shipping!Mint & Tested 100% Working! Roland SR-JV80-19 HOUSE Collection Expansion Board Sound ROM Card SRJV80 SRJV JV-80 19 HOUSE for XP Keyboards / Synths & JV1080, JV2080, JV1010, XV3080, XV5080 Rack Synth Synthesizer. Minty Condition! SAFE Shipping! ($293.75)

Replacement Backup Battery for Roland Synthsizers XP10 XP30 XP50 XP60 XP80Replacement Backup Battery for Roland Synthsizers XP10 XP30 XP50 XP60 XP80 ($9.49)

Black key  XP-50 XP XP60 XP80 JW JV80 JV 90 JX1 JV30 KEY PartsBlack key XP-50 XP XP60 XP80 JW JV80 JV 90 JX1 JV30 KEY Parts ($4.52)

Roland XP-50 XP XP60 XP80 JW JV80 JV 90 JX1 JV30 TOP Right C' 11 Note KEYRoland XP-50 XP XP60 XP80 JW JV80 JV 90 JX1 JV30 TOP Right C' 11 Note KEY ($16.88)

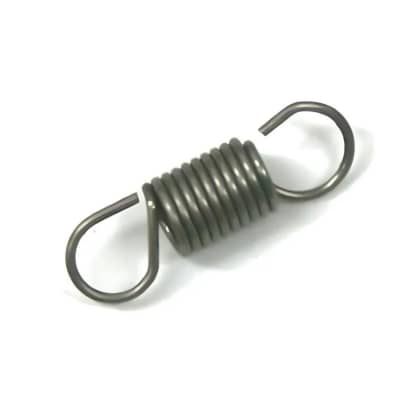

5 X Parts Keyboard Genuine ROLAND JUNO XP50 XP80 JV80 10000 KR etc short SPRING5 X Parts Keyboard Genuine ROLAND JUNO XP50 XP80 JV80 10000 KR etc short SPRING ($7.23)
