SynthsEnsoniq ⇝ Ensoniq SQ-1

Ensoniq SQ-1 PlusEnsoniq SQ-1 Plus BackEnsoniq SQ-1 Plus Left SideEnsoniq SQ-1 Sound ControlsEnsoniq SQ-1 Sequencer ControlsEnsoniq SQ-1 Plus Main Board

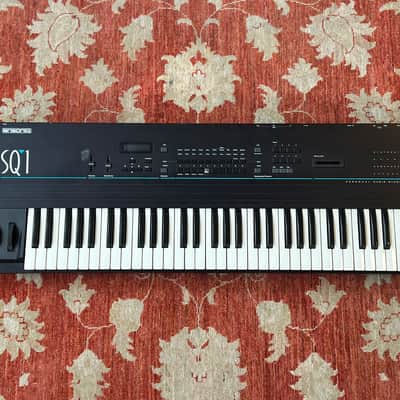

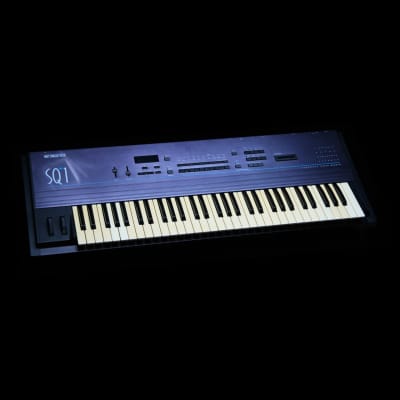

The Ensoniq SQ-1 is a digital synthesizer based on ROM waveforms (a ROMpler). It is patch-compatible with the Ensoniq SQ-2 (the 76-key version with the same engine) and the Ensoniq KS-32. It is also available in rackmount form as the SQ-R.

21-note and 32-note-polyphonic versions of the SQ-1 exist. The models are SQ-1, SQ-1 Plus, and SQ-1 Plus 32-voice. The plus versions have improved piano sounds.

It contains a set of 9 transwaves that can be used for wave sequencing. Here is the transwave list:

Common Repairs

The CR2032 memory backup battery is soldered to the main board. When it dies, a battery holder should be installed in its place.

The front panel buttons are table-shaped and rest on a plastic frame. The legs can become bent or broken, causing buttons to be permanently pushed in. They are not difficult to replace if you can find spares.

The 1/4" audio connectors are plastic and not flush with the case. They can break and will need to be replaced with new ones, but they are fairly standard and a simple soldering job to replace.

Broken keys can be challenging because you have to completely disassemble the synthesizer to remove the keyboard, but once you've removed so many screws that your hand hurts, replacing a key is simple. The key return springs have a fair amount of tension, and you will need pliers to reattach them.

Internally, the SQ-1 has 3 circuit boards - a power supply board, the main board which is managed by a Motorola 68000 CPU, and the front panel display/button board.

Manual

To our knowledge there wasn't a copy of the SQ-1 Plus / SQ-2 manual available in PDF form, so we scanned our copy. It's available below.

Specifications

Year Released: 1991

MSRP: 1595.00 USD

Keyboard: 61 keys with velocity

Polyphony: 21 notes

Multitimbral: 24 parts

Preset Patches: 100

User Patches: 80

ROM: 3MB (167 16-bit waveforms including 1 MB piano)

Dimensions: 1026 mm x 340 mm x 130 mm

Weight: 11.3 kg

Latest OS Version: 1.11

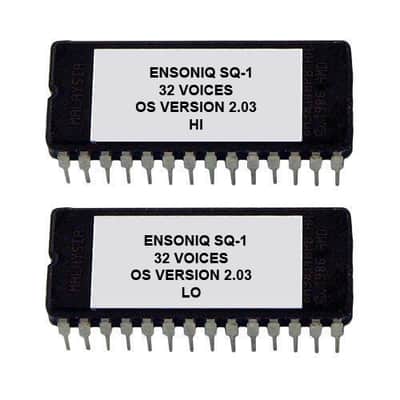

Latest OS Version For SQ-1 32: 2.03

Latest OS Version For SQ-1+: 1.15

User Demo Videos

Rating


3.5
(10 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Ensoniq SQ-1 Plus and SQ-2 Manual

KSEdit for Ensoniq SQ Synths (Windows Freeware Works with Ensoniq KS-32, SQ-1, SQ-2, and SQ-R)

Items for Sale on Reverb

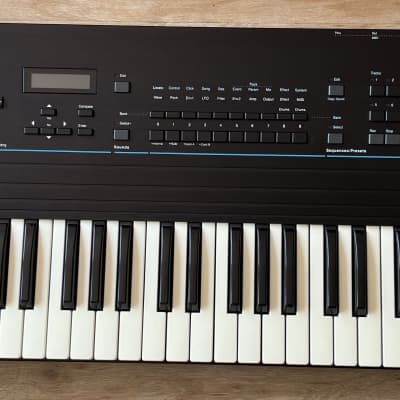

Ensoniq SQ-1 Synthesizer w/ SKB Flight Case & Sound Card & Alesis Data DiskEnsoniq SQ-1 Synthesizer w/ SKB Flight Case & Sound Card & Alesis Data Disk ($760)

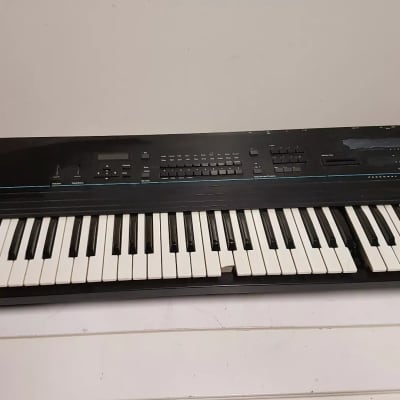

Ensoniq SQ-1  Synthesizer 1990+ seq upgrade & mini-manualEnsoniq SQ-1 Synthesizer 1990+ seq upgrade & mini-manual ($525.97)

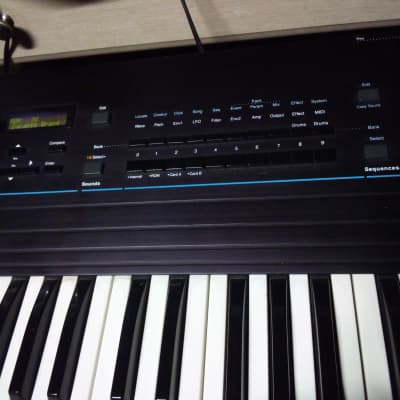

Ensoniq SQ-1 Plus Synthesizer FOR PARTS OR REPAIREnsoniq SQ-1 Plus Synthesizer FOR PARTS OR REPAIR ($250)

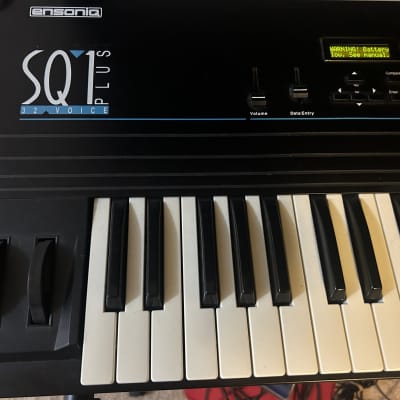

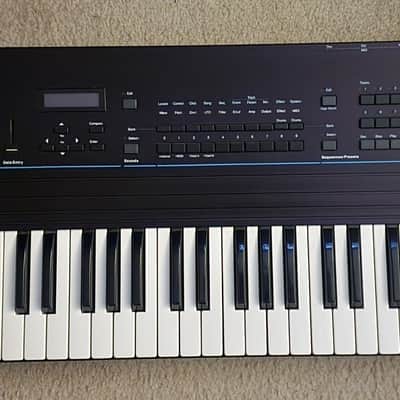

Ensoniq SQ-1 Plus Digital Synthesizer 1991 - BlackEnsoniq SQ-1 Plus Digital Synthesizer 1991 - Black ($400)

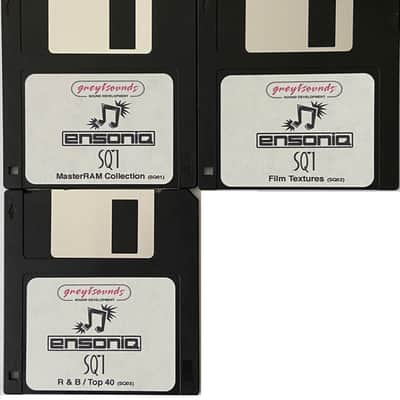

Ensoniq SQ1 / SQR / SQ2 Synth Patches • 3 Bank Set - Digital DownloadEnsoniq SQ1 / SQR / SQ2 Synth Patches • 3 Bank Set - Digital Download ($20)

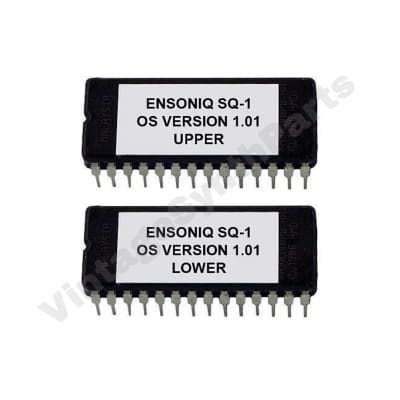

Ensoniq SQ-1 OS version 1.01 EPROM Firmware Upgrade Update for SQ1 RomEnsoniq SQ-1 OS version 1.01 EPROM Firmware Upgrade Update for SQ1 Rom ($28.20)

Ensoniq SQ-1 version OS 1.01 EPROM Firmware Upgrade SET / Brand ROM Update Chips SQ1Ensoniq SQ-1 version OS 1.01 EPROM Firmware Upgrade SET / Brand ROM Update Chips SQ1 ($27.95)

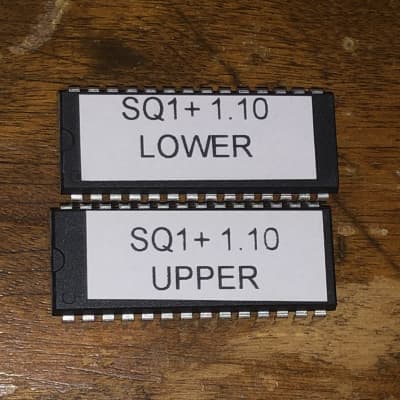

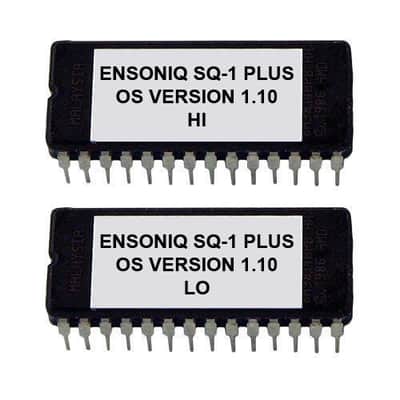

Ensoniq SQ-1 Plus OS 1.10 ROM update firmware kit set SQ1+Ensoniq SQ-1 Plus OS 1.10 ROM update firmware kit set SQ1+ ($41.99)

Slide potentiometer Volume For Ensoniq Sq-1 Sq-2 Sq-R Vintage Synth PartsSlide potentiometer Volume For Ensoniq Sq-1 Sq-2 Sq-R Vintage Synth Parts ($9.98)

Ensoniq Jack Nuts for Ensoniq ESQ-1 (metal body), ESQ-M, Mirage (all), SQ-1, SQ-REnsoniq Jack Nuts for Ensoniq ESQ-1 (metal body), ESQ-M, Mirage (all), SQ-1, SQ-R ($1.50)

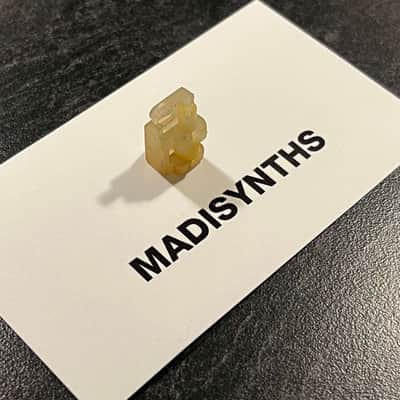

Ensoniq Key Contact Retainers for Ensoniq ESQ-1 (both) & Mirage (all), SQ-1, SQ-2Ensoniq Key Contact Retainers for Ensoniq ESQ-1 (both) & Mirage (all), SQ-1, SQ-2 ($1.50)

Ensoniq Power Switch for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), VFX, VFX-SD, SD-1, SQ-2, SQ-REnsoniq Power Switch for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), VFX, VFX-SD, SD-1, SQ-2, SQ-R ($5.95)

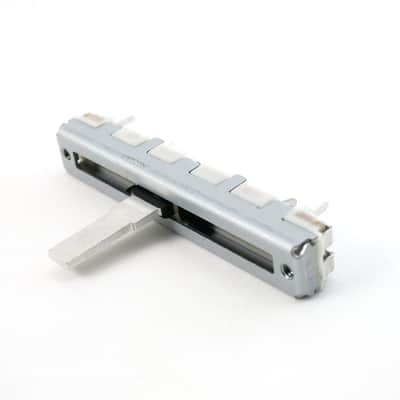

Ensoniq - SQ-1, SQ-2 , SQ-R - Slide potentiometer 10kbEnsoniq - SQ-1, SQ-2 , SQ-R - Slide potentiometer 10kb ($16.99)

Ensoniq Cartridge Assembly for Ensoniq ESQ-1 (metal body), SQ-80Ensoniq Cartridge Assembly for Ensoniq ESQ-1 (metal body), SQ-80 ($19.95)

Ensoniq - SQ-80 , VFX-sd , SD-1 - New BatteryEnsoniq - SQ-80 , VFX-sd , SD-1 - New Battery ($22.90)

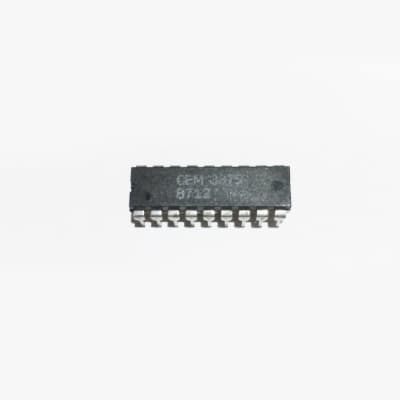

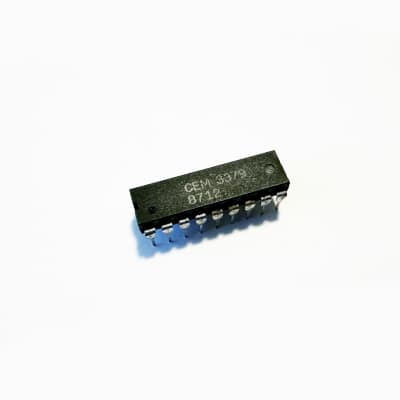

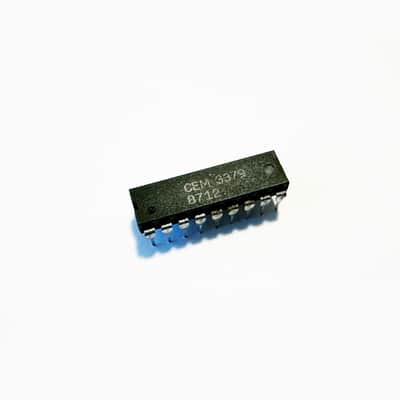

IC, CEM 3379 Voltage-Controlled 24 dB/oct. VCF, VCA, VC pan Chip for Ensoniq ESQ-1 SQ-80 Prophet VS..IC, CEM 3379 Voltage-Controlled 24 dB/oct. VCF, VCA, VC pan Chip for Ensoniq ESQ-1 SQ-80 Prophet VS.. ($29.95)

Ensoniq ESQ-1/SQ-80 EEPROM Cartridge PCB - Direct from PCB designerEnsoniq ESQ-1/SQ-80 EEPROM Cartridge PCB - Direct from PCB designer ($20)

Ensoniq - ESQ-1 , ESQ-M , SQ-80 - Slide potentiometer - 10kbEnsoniq - ESQ-1 , ESQ-M , SQ-80 - Slide potentiometer - 10kb ($16.99)

Ensoniq ESQ-1 SQ-80 Original Display Bezel. Good Condition !Ensoniq ESQ-1 SQ-80 Original Display Bezel. Good Condition ! ($29)

Ensoniq ESQ-1 / ESQ-M / SQ-80 EEPROM Data / Memory Card ExpansionEnsoniq ESQ-1 / ESQ-M / SQ-80 EEPROM Data / Memory Card Expansion ($87.90)

IC, SSM2300 Multiplexed Chip for Ensoniq ESQ-1 SQ-80 E-MU Oberheim Akai.IC, SSM2300 Multiplexed Chip for Ensoniq ESQ-1 SQ-80 E-MU Oberheim Akai. ($19.99)

Ensoniq ISC-1 ROM Sound Card for SQ-1 SQR SynthEnsoniq ISC-1 ROM Sound Card for SQ-1 SQR Synth ($95)

Ensoniq SQ-80 / ESQ-1 / VFX SD / SQ2  Volume & Data Slider Replacement Kit by BassmobileEnsoniq SQ-80 / ESQ-1 / VFX SD / SQ2 Volume & Data Slider Replacement Kit by Bassmobile ($24.95)

SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both)SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both) ($24.95)

Curtis CEM 3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109Curtis CEM 3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both)SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both) ($24.95)

Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both)SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both) ($24.95)

Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

Ensoniq ROM & RAM Card Collection, MC-32 RAM Card, ISC-1, ISC-2, SC-4, SQ-1 CardsEnsoniq ROM & RAM Card Collection, MC-32 RAM Card, ISC-1, ISC-2, SC-4, SQ-1 Cards ($299)

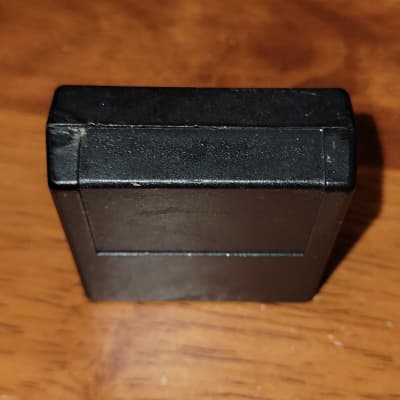

Ensoniq SXQ-1 Sequencer Expander CartridgeEnsoniq SXQ-1 Sequencer Expander Cartridge ($75)

Ensoniq FSW-1 foot switch ESQ-1 SQ-80 TS-10 SD-1 ASREnsoniq FSW-1 foot switch ESQ-1 SQ-80 TS-10 SD-1 ASR ($65)

SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both)SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both) ($18.50)

Ensoniq SQX cover for Ensoniq ESQ-1 (metal body)Ensoniq SQX cover for Ensoniq ESQ-1 (metal body) ($6.95)

Slide potentiometer For Ensoniq Esq-1 Esq-m Sq-80 volume or data SliderSlide potentiometer For Ensoniq Esq-1 Esq-m Sq-80 volume or data Slider ($9.98)

Voice Crystal Ensoniq Voice Crystal 1 RAM Card SQ2/SQR+/SQ1+Voice Crystal Ensoniq Voice Crystal 1 RAM Card SQ2/SQR+/SQ1+ ($89.11)

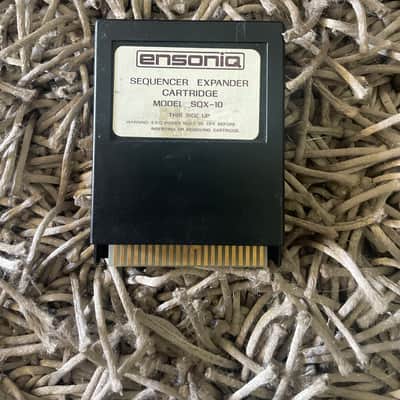

Ensoniq Sqx-10 sequencer expansion cartridge for esq-1Ensoniq Sqx-10 sequencer expansion cartridge for esq-1 ($75)

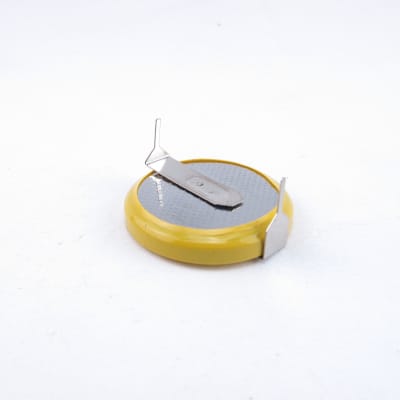

Ensoniq - SQ1, SQ2, SQR, KS32 , DP series DP2, DP4 - BatteryEnsoniq - SQ1, SQ2, SQR, KS32 , DP series DP2, DP4 - Battery ($5.58)

Ensoniq - TS10, TS12, SQ1, SQ2, SQR, KS32 , DP series DP2, DP4 - BatteryEnsoniq - TS10, TS12, SQ1, SQ2, SQR, KS32 , DP series DP2, DP4 - Battery ($5)

Voice Crystal Ensoniq Voice Crystal 2 RAM Card SQ2/SQR+/SQ1+Voice Crystal Ensoniq Voice Crystal 2 RAM Card SQ2/SQR+/SQ1+ ($89.11)

Ensoniq SQX-70 sequencer expansion memory upgrade kit TS-10, TS-12, SD-1, VFX-sd, KS-32, SQ-1, SQ-2Ensoniq SQX-70 sequencer expansion memory upgrade kit TS-10, TS-12, SD-1, VFX-sd, KS-32, SQ-1, SQ-2 ($37.99)

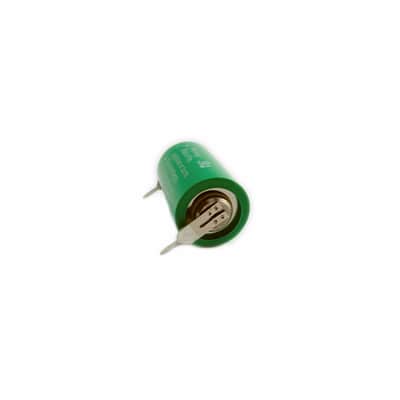

Ensoniq - ESQ1 , ESQM . SQ80 . SD-1 - BatteryEnsoniq - ESQ1 , ESQM . SQ80 . SD-1 - Battery ($13.99)
