The Yamaha FS1r is Yamaha's most advanced hardware FM synthesizer, featuring a combination of 8-operator FM and formant synthesis. It is capable of producing sounds similar to the DX7, vocoder-like Human vocal sounds, and everything in-between. It can load SysEx dumps of Yamaha DX7 patches and reproduce them, but with less DAC noise.

It has a very complex interface and can be very challenging to program, even with a software editor (Yamaha included a custom FS1r-only version of SoundDiver with the unit). It was not very popular during its initial production run and was discontinued after being on the market a short time. It later became much more popular and used units often sell for more than the original new retail price.

We've made the SoundDiver FS1r OEM version that shipped with the unit available below, but since it was intended for use with Windows 98, it may not run properly on a modern Windows system (we couldn't get it to run on Windows 7, but it ran fine on a Linux machine via Wine).

Specifications

Year Released: 1999

MSRP: 999.00 USD

Polyphony: 32 notes

Multitimbral: 4 parts

Preset Patches: 1408

User Patches: 128

Effects: 15 (Reverb), 28 (Variation), 40 (Insertion)

Screen: Custom LCD (Character & Graphic) w/backlight

Dimensions: 480 mm x 235 mm x 44 mm

Weight: 2.6 kg

This is a 1-space rack unit.

Tone Generator: Formant Shaping / FM Synthesis, LFO1/LFO2/Dynamic Filter/Pitch EG/Filter EG

Maximum Polyphony: 32 (without Filter) / 16 (with Filter)

Number of Multitimbral Parts: 4 parts (16 MIDI channels)

Operators: 8 Voiced Operator + 8 Unvoiced Operator per Voice

Algorithms: 88

Performances: 384 (256 Preset, 128 User-Programmable) to be made up of up to 4 part of Voice programs as layer/split

Compatibility: Receive DX7 MIDI Bulk dump (1 voice format only)

Connectors: Headphones, Stereo Output (L/ Mono, R), Individual Output (L/R), MIDI In/Out/Thru

Controllers: Control Knob 4 Assignable / Fixed (Attack/Release/Formant/FM), Volume Knob

User Demo Videos

Rating


5
(6 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Yamaha FS1r Manual

Yamaha FS1r Data List

Yamaha FS1r Algorithm Chart

SoundDiver Yamaha FS1r OEM Version

Items for Sale on Reverb

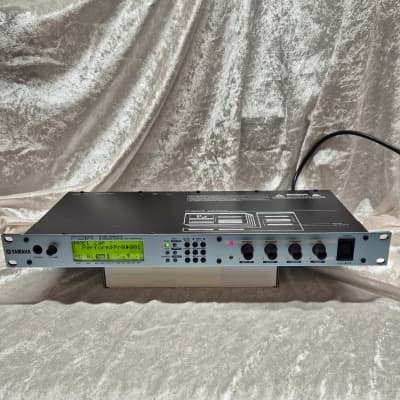

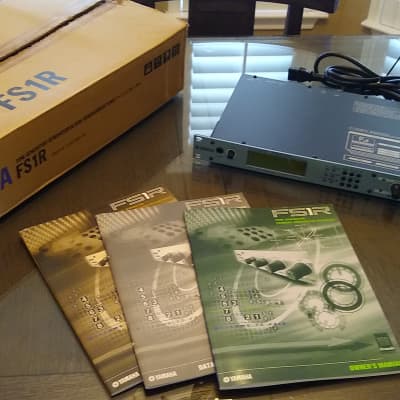

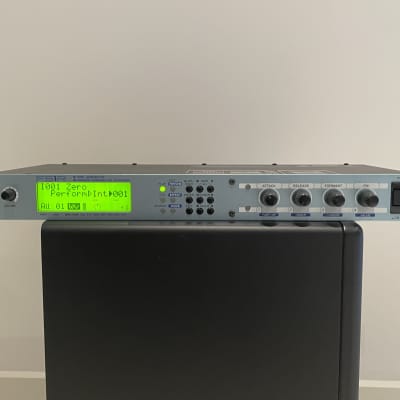

Yamaha FS1R FM Synthesizer Rack + Fast Neuwertig + 1,5 Jahre GarantieYamaha FS1R FM Synthesizer Rack + Fast Neuwertig + 1,5 Jahre Garantie ($2,639.36)

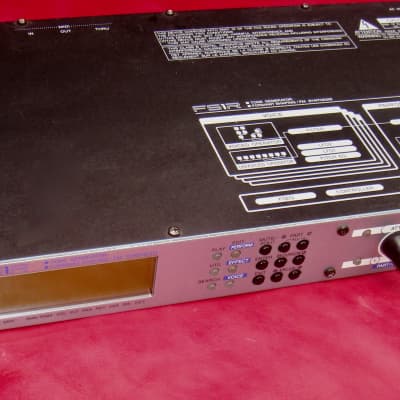

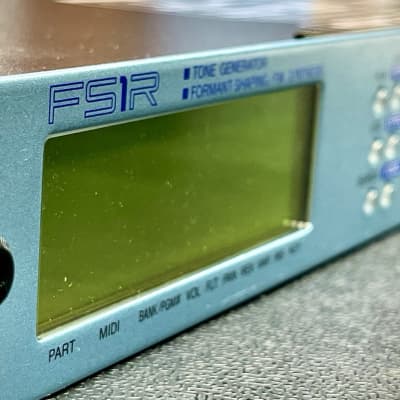

Yamaha FS1R FM Synthesizer Rack Tone Generator + Top Zustand + 1,5 Jahre GarantieYamaha FS1R FM Synthesizer Rack Tone Generator + Top Zustand + 1,5 Jahre Garantie ($2,524.61)

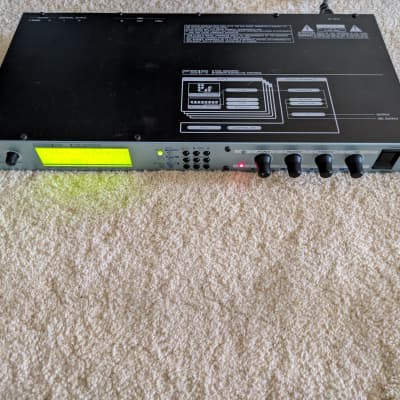

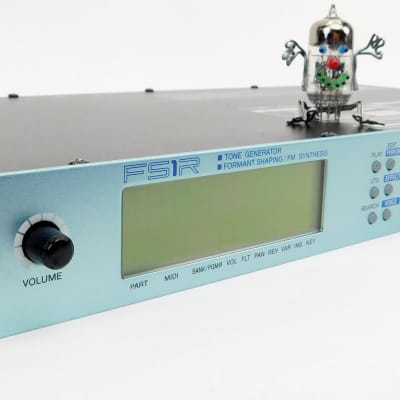

Yamaha FS1R FM Synthesizer Rack + Sehr Guter Zustand + 1,5 Jahre GarantieYamaha FS1R FM Synthesizer Rack + Sehr Guter Zustand + 1,5 Jahre Garantie ($2,409.85)

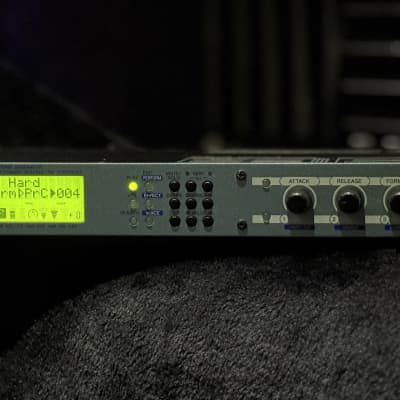

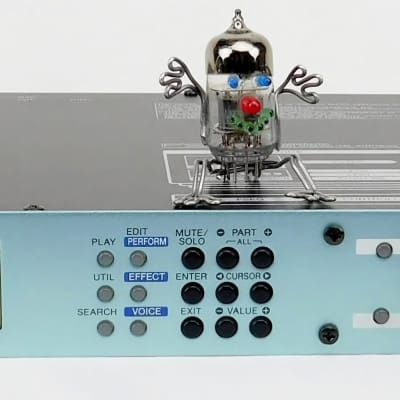

Yamaha FS1R FM Synthesizer Rack + Top Zustand + 1,5 Jahre GarantieYamaha FS1R FM Synthesizer Rack + Top Zustand + 1,5 Jahre Garantie ($2,524.61)

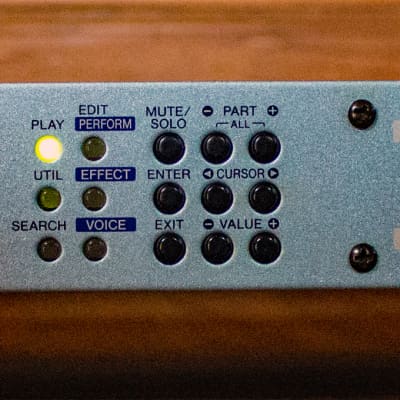

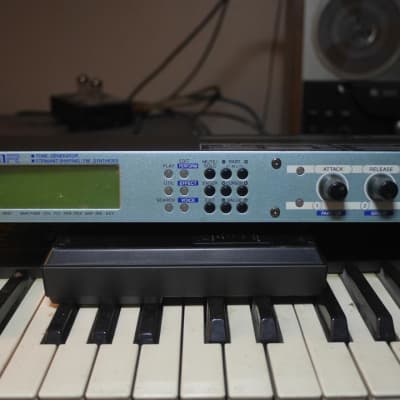

Yamaha FS1R FM Synthesizer Rack + Fast Neuwertig + 1,5 Jahre GarantieYamaha FS1R FM Synthesizer Rack + Fast Neuwertig + 1,5 Jahre Garantie ($2,754.12)

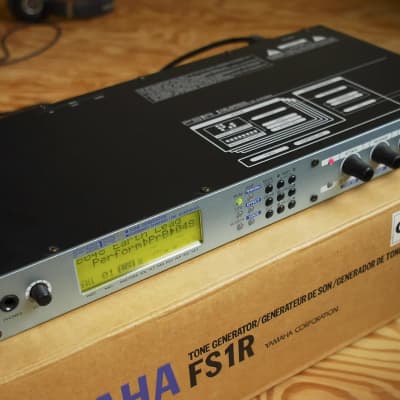

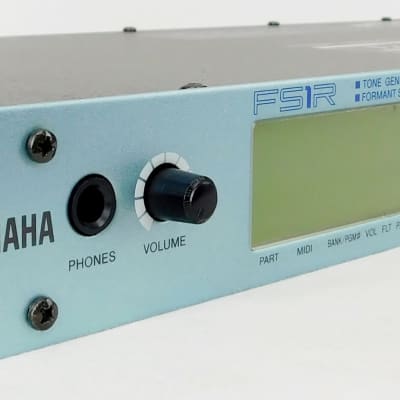

Yamaha FS1R FM Synthesizer Rack + Fast Neuwertig + OVP + 1,5 Jahre GarantieYamaha FS1R FM Synthesizer Rack + Fast Neuwertig + OVP + 1,5 Jahre Garantie ($2,639.36)

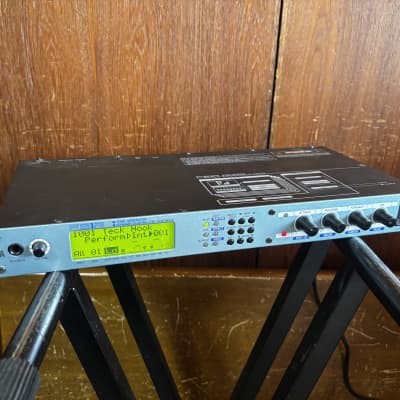

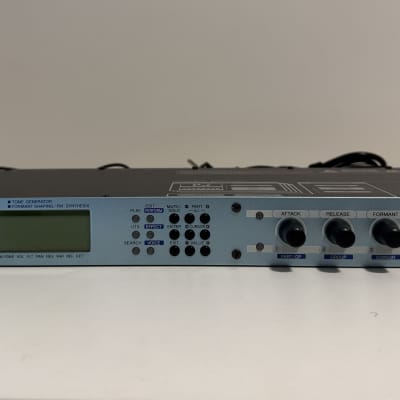

Yamaha FS1R Synthesizer FM Formant Shaping Rack +Top Zustand+ 1,5 Jahre GarantieYamaha FS1R Synthesizer FM Formant Shaping Rack +Top Zustand+ 1,5 Jahre Garantie ($2,524.61)

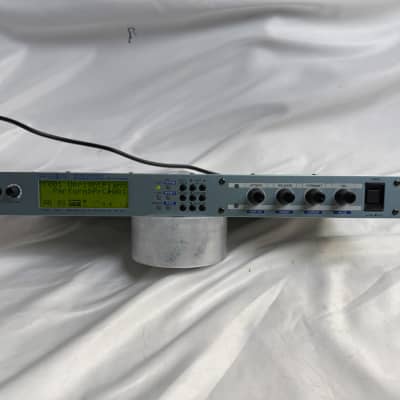

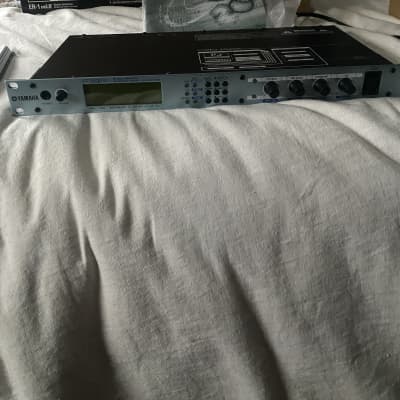

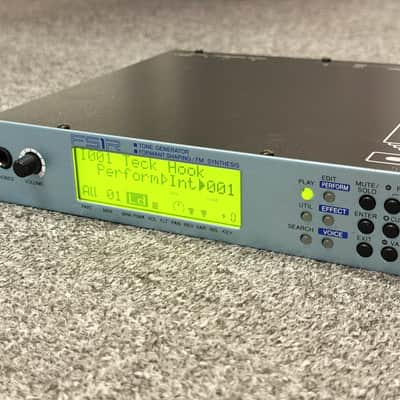

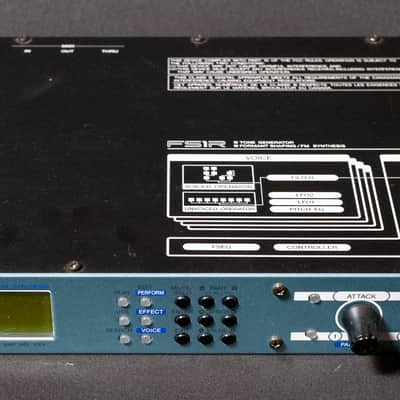

Yamaha FS1R FM Tone Generator 1998 - SilverYamaha FS1R FM Tone Generator 1998 - Silver ($2,500)

Yamaha FS1R FM Tone Generator 1998 - SilverYamaha FS1R FM Tone Generator 1998 - Silver ($1,930.19)

Yamaha FS1R FM Synthesizer Rack + Guter Zustand + 1,5 Jahre GarantieYamaha FS1R FM Synthesizer Rack + Guter Zustand + 1,5 Jahre Garantie ($2,272.14)

Yamaha FS1R FM Tone Generator 1998 - SilverYamaha FS1R FM Tone Generator 1998 - Silver ($3,407.09)

Yamaha FS1R FM rack synth module in excellent condition.Yamaha FS1R FM rack synth module in excellent condition. ($1,704.11)

Yamaha FS1R FM Tone Generator 1998 - SilverYamaha FS1R FM Tone Generator 1998 - Silver ($2,003.50)

Yamaha FS1R FM Tone Generator 1998 - SilverYamaha FS1R FM Tone Generator 1998 - Silver ($2,323.67)

Yamaha FS1R TONE GENERATOR FORMANT SHAPING/ FM SYNTHESIS NEW INTERNAL BATTERY!!!Yamaha FS1R TONE GENERATOR FORMANT SHAPING/ FM SYNTHESIS NEW INTERNAL BATTERY!!! ($2,200)

Yamaha FS1R FM Tone GeneratorYamaha FS1R FM Tone Generator ($2,215.35)

Yamaha FS1R FM Tone Generator - 220/240V versionYamaha FS1R FM Tone Generator - 220/240V version ($2,248.29)

Yamaha FS1R FM Tone Generator 1998 - Silver (Warranty)Yamaha FS1R FM Tone Generator 1998 - Silver (Warranty) ($2,611.84)

Yamaha FS1R FM Tone Generator 1998 - SilverYamaha FS1R FM Tone Generator 1998 - Silver ($2,499.36)

Yamaha FS1R FM Tone Generator 1998 - SilverYamaha FS1R FM Tone Generator 1998 - Silver ($1,589.37)

Yamaha FS1R FM Tone Generator 1998 - SilverYamaha FS1R FM Tone Generator 1998 - Silver ($1,931.33)

Yamaha FS1 RYamaha FS1 R ($2,044.93)

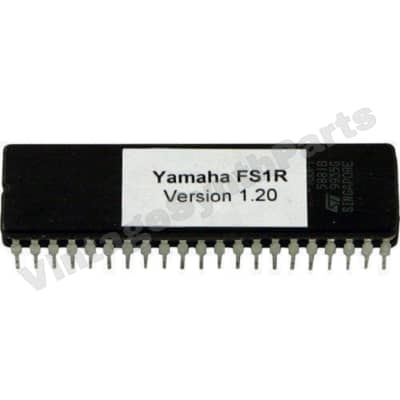

YAMAHA FS1R OS VERSION 1.20 firmware EPROM FS-1R Update Upgrade RomYAMAHA FS1R OS VERSION 1.20 firmware EPROM FS-1R Update Upgrade Rom ($19.26)
