SynthsYamaha ⇝ Yamaha DX11

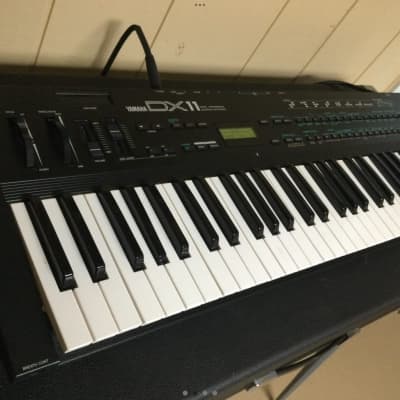

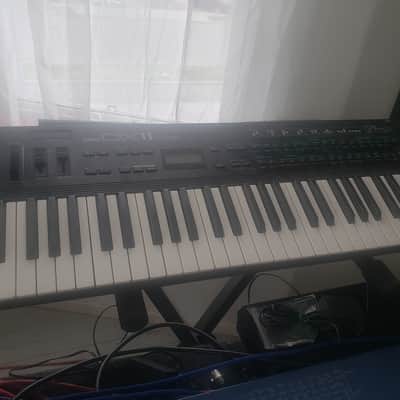

Yamaha DX11

The DX11 is a 4-operator FM synthesizer. In contrast to previous DX-series synthesizers, the DX11 is 8-part multitimbral. It is the keyboard version of the TX81Z, which was released first. It allows the use of non-sine operator waveforms, which makes it possible to create richer sounds than those available to sine-only 4-operator synths.

Like the TX81Z, YS200, and TQ5, the sound engine is based on the Yamaha YM2414 chip.

The RAM battery is a CR2032 that is soldered to the circuit board, so it's difficult to replace. Typically the battery is desoldered from the board and replaced with a battery holder so that future replacements are easier.

To perform a factory reset, turn the power on. Press and hold the [EDIT] button, then the [16] button, then the [32] button. Release all three buttons. Press the [YES] button. Turn the power off and then back on.

A Japanese variant of this is called the "V2" and is the same synth with a different name. That name was not used outside of Japan due to the association with the V-2 rockets used by Germany in Word War II.

Specifications

Year Released: 1988

MSRP: 1095.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 8 notes

Multitimbral: 8 parts

Preset Patches: 128

User Patches: 32

User Performances: 32

Screen: 16 x 2 character backlit LCD

Power Consumption: 10 watts

Dimensions: 901 mm x 298 mm x 63 mm

Weight: 7.0 kg

User Demo Videos

Rating


4.2
(5 votes)

File Downloads

Yamaha DX11 Manual

Items for Sale on Reverb

Yamaha DX11 Programmable Algorithm Multitimbral FM SynthYamaha DX11 Programmable Algorithm Multitimbral FM Synth ($298.76)

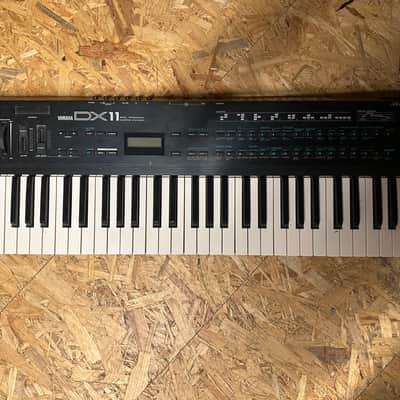

Yamaha DX11 Programmable Algorithm Synthesizer 1988 - BlackYamaha DX11 Programmable Algorithm Synthesizer 1988 - Black ($365.15)

comes with hard case Yamaha DX11 Programmable Algorithm Digital Polyphonic Multitimbral FM Synthesizer 1988 - Blackcomes with hard case Yamaha DX11 Programmable Algorithm Digital Polyphonic Multitimbral FM Synthesizer 1988 - Black ($438.18)

Yamaha DX11 Programmable Algorithm Synthesizer 1988 - BlackYamaha DX11 Programmable Algorithm Synthesizer 1988 - Black ($280)

Yamaha V2 (DX11) FM Synthesizer - 80's Yamaha FM Synthesizer DX series - H179Yamaha V2 (DX11) FM Synthesizer - 80's Yamaha FM Synthesizer DX series - H179 ($249)

Yamaha V2 (DX11) FM Synthesizer 100V Made in Japan MIJYamaha V2 (DX11) FM Synthesizer 100V Made in Japan MIJ ($395)

YAMAHA DX-11 Synthesizer Original Main-Mother Board. Works Great !...YAMAHA DX-11 Synthesizer Original Main-Mother Board. Works Great !... ($99)

Yamaha V2 / DX11 - 61-Key 8-Voice Polyphonic Synthesizer Keyboard with GigbagYamaha V2 / DX11 - 61-Key 8-Voice Polyphonic Synthesizer Keyboard with Gigbag ($375)

OLED Display Upgrade - Yamaha TX7 - DX7 - DX9 - DX11 - DX21 - FB-01OLED Display Upgrade - Yamaha TX7 - DX7 - DX9 - DX11 - DX21 - FB-01 ($165.98)

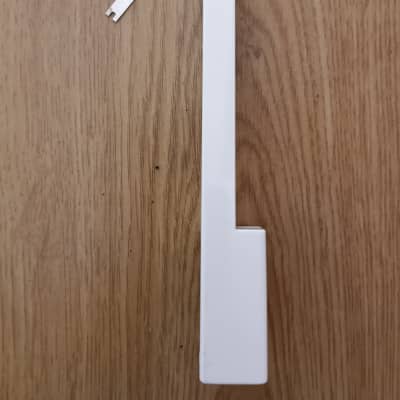

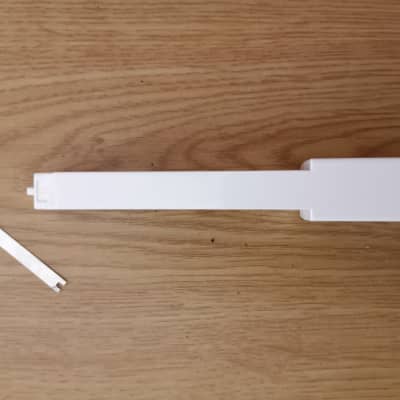

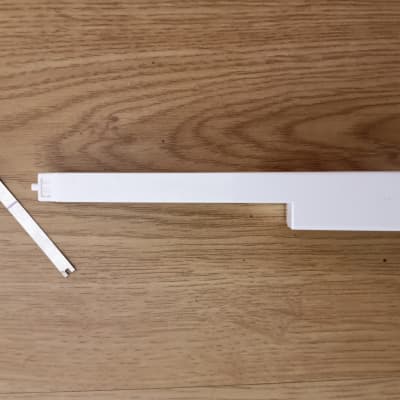

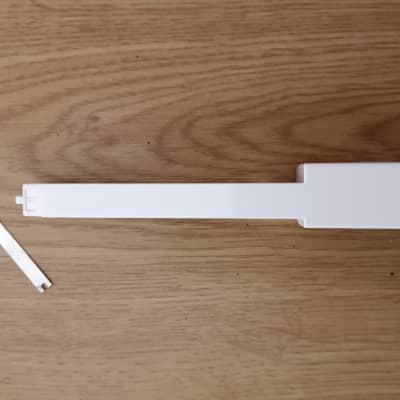

ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VA850100) for SY22/35/55, DX11ORIGINAL Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VA850100) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VA850300) for SY22/35/55, DX11ORIGINAL Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VA850300) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11 ($11.95)

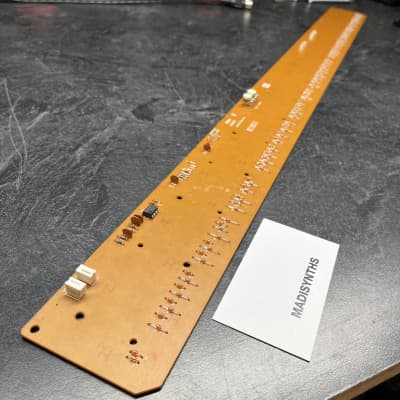

Yamaha - DX11 , V50 -  Key contact boardYamaha - DX11 , V50 - Key contact board ($54.90)

ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VA850100) for SY22/35/55, DX11ORIGINAL Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VA850100) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VA850300) for SY22/35/55, DX11ORIGINAL Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VA850300) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VA850300) for SY22/35/55, DX11ORIGINAL Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VA850300) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11ORIGINAL Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VA850000) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11ORIGINAL Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VA850200) for SY22/35/55, DX11 ($11.95)

ORIGINAL Yamaha Replacement SHARP/BLACK Key (Yamaha C61K6 Keybeds) (VA850500) for SY22/35/55, DX11ORIGINAL Yamaha Replacement SHARP/BLACK Key (Yamaha C61K6 Keybeds) (VA850500) for SY22/35/55, DX11 ($9.95)

ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11 ($11.95)

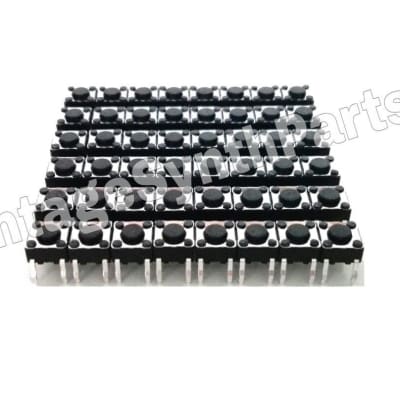

Yamaha DX11 complete set 48 tactile switch,replacementYamaha DX11 complete set 48 tactile switch,replacement ($24.99)

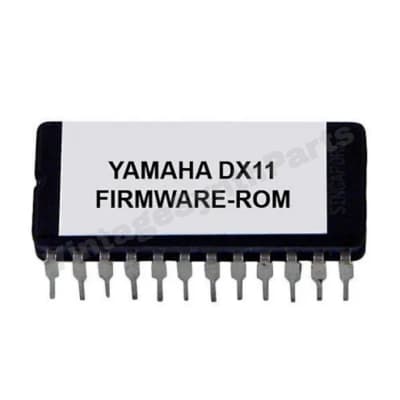

Yamaha DX11 Firmware Eprom Dx-11 Rescue Rom OsYamaha DX11 Firmware Eprom Dx-11 Rescue Rom Os ($16.98)

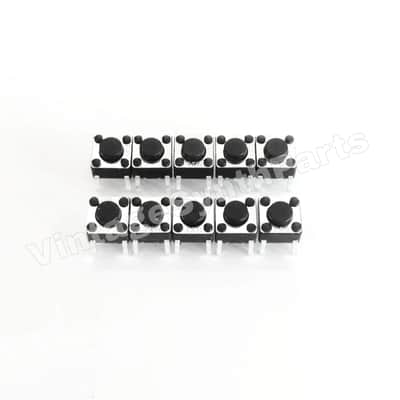

Pushbuttons Tact Switches Full Set Of 48 for Yamaha Dx-11 Micro Switch Dx11Pushbuttons Tact Switches Full Set Of 48 for Yamaha Dx-11 Micro Switch Dx11 ($15.22)

YAMAHA DX-11 Synthesizer Right Side Plastic End Panel. Good Condition !YAMAHA DX-11 Synthesizer Right Side Plastic End Panel. Good Condition ! ($39)

Yamaha - KX88 , KX76 , RX Series , DX Series, DX7, RY-10, RY-20, RY-30 , DX11 , TF1 - BatteryYamaha - KX88 , KX76 , RX Series , DX Series, DX7, RY-10, RY-20, RY-30 , DX11 , TF1 - Battery ($5.62)

Yamaha KX88 , KX76 , RX Series , DX Series, DX7, RY-10, RY-20, RY-30 , DX11 , TF1 BatteryYamaha KX88 , KX76 , RX Series , DX Series, DX7, RY-10, RY-20, RY-30 , DX11 , TF1 Battery ($5.62)

Yamaha DX7II , DX7s, DX11 , RX5 , RX7 , DMP7 , TX802 - BatteryYamaha DX7II , DX7s, DX11 , RX5 , RX7 , DMP7 , TX802 - Battery ($5.62)

Yamaha - DX7ii , DX7s, DX11 , RX5 , RX7 , DMP7 , TX802 - New 3v BatteryYamaha - DX7ii , DX7s, DX11 , RX5 , RX7 , DMP7 , TX802 - New 3v Battery ($4.99)

ORIGINAL Yamaha Key Contact PCB (VE197500) for SY55, DX11ORIGINAL Yamaha Key Contact PCB (VE197500) for SY55, DX11 ($54.95)

YAMAHA kx88 DX RX dx7 ry-10 ry-20 ry-30 dx11-Battery Replacement fixYAMAHA kx88 DX RX dx7 ry-10 ry-20 ry-30 dx11-Battery Replacement fix ($9.03)

Yamaha - KX88 , KX76 ,RX Series ,DX Series,DX7,RY-10,RY-20,RY-30 , DX11 , TF1 - BatteryYamaha - KX88 , KX76 ,RX Series ,DX Series,DX7,RY-10,RY-20,RY-30 , DX11 , TF1 - Battery ($5)

YAMAHA Top-C Key for N1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50YAMAHA Top-C Key for N1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50 ($19.99)

Volt X81pg - Hardware Programmer for Yamaha TX81ZVolt X81pg - Hardware Programmer for Yamaha TX81Z ($150)

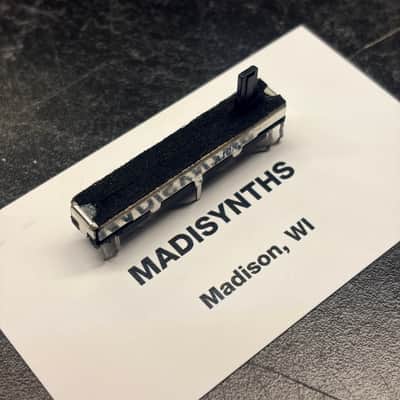

NEW Yamaha Replacement Data Slider for DX7, DX9, DX11, DX21, DX27, DX100NEW Yamaha Replacement Data Slider for DX7, DX9, DX11, DX21, DX27, DX100 ($17.95)

ORIGINAL Yamaha Replacement Keyspring (VC077600) for SY22/35/55, DX11, AN1xORIGINAL Yamaha Replacement Keyspring (VC077600) for SY22/35/55, DX11, AN1x ($1.50)

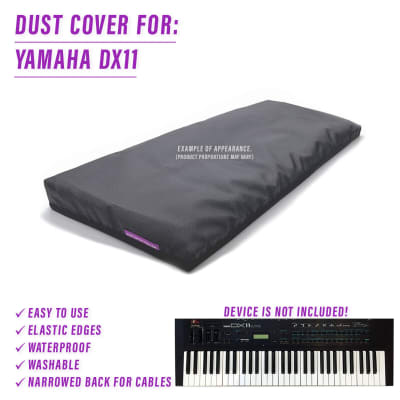

DUST COVER for YAMAHA DX11- Waterproof, easy to use, elastic edgesDUST COVER for YAMAHA DX11- Waterproof, easy to use, elastic edges ($32.99)

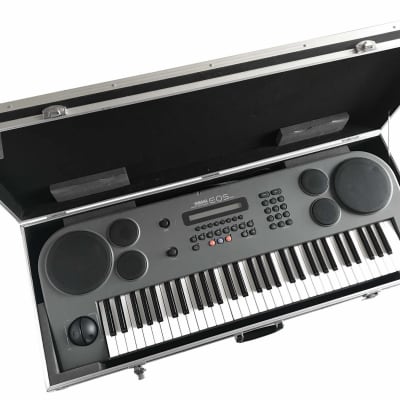

1988 Yamaha EOS B200 Vintage FM Digital Synthesizer Keyboard + Yamaha Hard Case Japan 100V YS200 DX11 TQ51988 Yamaha EOS B200 Vintage FM Digital Synthesizer Keyboard + Yamaha Hard Case Japan 100V YS200 DX11 TQ5 ($400)
