Synths ⇝ Roland ⇝ Roland JD-800

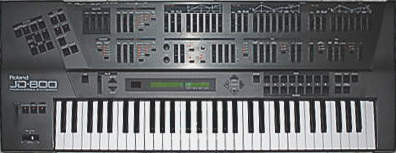

The JD-800 is a digital synthesizer with a control panel containing a large array of sliders for patch editing.

The JD-800 can be expanded with the SL-JD80 expansion cards.

It is also available in rackmount form with a larger sound ROM as the Roland JD-990.

Specifications

Year Released: 1991

MSRP: 2895.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 24 notes

Multitimbral: 6 parts

User Patches: 64

ROM: 3MB (108 waveforms)

Effects: Chorus, Delay, Distortion, Enhancer, Equalizer, Phaser, Reverb

Power Consumption: 25 watts

Dimensions: 1040 mm x 420 mm x 108 mm

Weight: 15.0 kg

User Demo Videos

Rating

File Downloads

Roland JD-800 Manual

Roland JD-800 Service Manual
