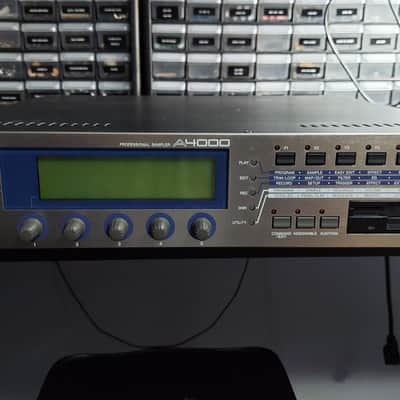

SamplersYamaha ⇝ Yamaha A4000

The A4000 was for sale at the same time as the Yamaha A5000 and was the lower-end option of the two with lower polyphony and fewer effects processors.

Its memory can be upgraded using standard 72-pin SIMM modules in matched pairs of 4, 8, 16, or 32MB each. The modules should have an access time of 70 nanoseconds or less.

It also supports installing an internal 3.5 inch 40-pin IDE or 50-pin SCSI hard drive. Seagate drives are the best-supported with models ST34311A (4.3 GB), ST36421A (6.4 GB), and ST38421A (8.4 GB) supported. Some Quantum Fireball and Western Digital drives also work. Installing an internal Zip drive is also supported.

Specifications

Year Released: 2000

Standard Sample Memory: 4MB

Max Sample Memory: 128MB

Bit Depth: 16-bit

Max Sample Rate: 44.1 Khz

Min Sample Rate: 5.5125 kHz

Polyphony: 64 notes

Multitimbral: 16 parts

User Patches: 128

Effects: 3 effects blocks with 96 different effects

Screen: 320 x 80 pixel backlit LCD

Dimensions: 480 mm x 461 mm x 90 mm

Weight: 8.0 kg

This is a 2-space rack unit.

User Demo Videos

Rating


4.7
(3 votes)

File Downloads

Yamaha A4000 and A5000 Manual

Items for Sale on Reverb

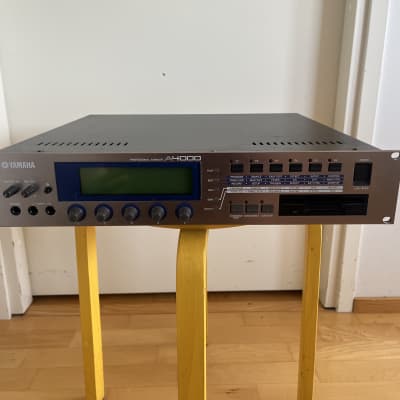

Yamaha A4000 Professional SamplerYamaha A4000 Professional Sampler ($282.26)

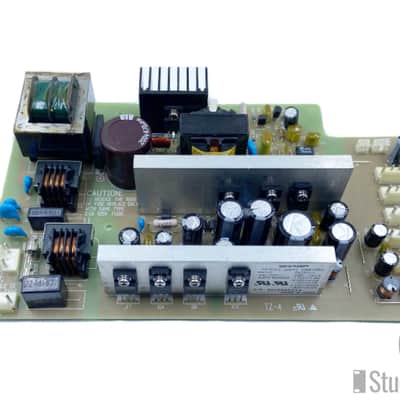

Yamaha A4000 A5000 100-120V Power Supply (Sharp B047)Yamaha A4000 A5000 100-120V Power Supply (Sharp B047) ($138.99)

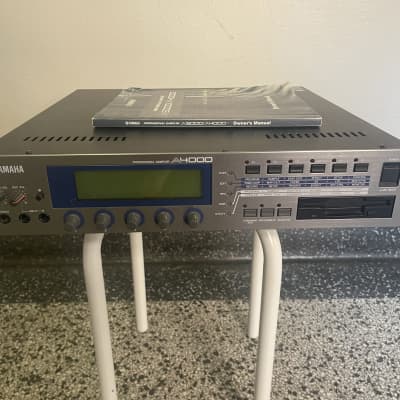

Yamaha A4000 Professional Sampler 1999 - SilverYamaha A4000 Professional Sampler 1999 - Silver ($620.98)

Yamaha A4000 Professional Sampler (Mint)Yamaha A4000 Professional Sampler (Mint) ($921.69)

Yamaha A3000 A4000 A5000Yamaha A3000 A4000 A5000 ($79.02)

Yamaha A3000 A4000 A5000Yamaha A3000 A4000 A5000 ($169.36)

Floppy Drive Emulator USB for Yamaha A3000 A4000 A5000Floppy Drive Emulator USB for Yamaha A3000 A4000 A5000 ($45.16)

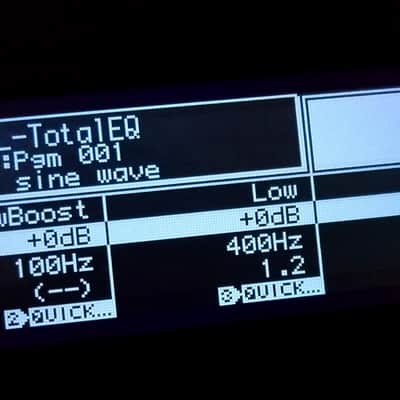

Graphic Display Upgrade - Yamaha A4000 A5000 Custom LED Display Upgrade !Graphic Display Upgrade - Yamaha A4000 A5000 Custom LED Display Upgrade ! ($171.18)

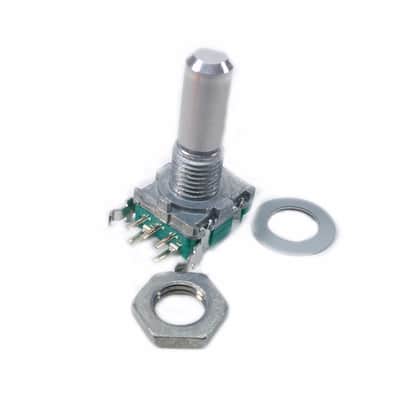

Yamaha - A4000 ,  A5000 - encoder with push buttonYamaha - A4000 , A5000 - encoder with push button ($14.90)

Original Power Supply Unit for Yamaha A3000 A4000 A5000 - PSU, 200-240V, PCB BoardOriginal Power Supply Unit for Yamaha A3000 A4000 A5000 - PSU, 200-240V, PCB Board ($111.78)

Yamaha A5000/A4000 "Demostration" Demo Floppy Disk Set (4)Yamaha A5000/A4000 "Demostration" Demo Floppy Disk Set (4) ($20)

YAMAHA A-3000 Factory floppy disks DEMOS Multi Templates A4000 A5000 DPD-A3001YAMAHA A-3000 Factory floppy disks DEMOS Multi Templates A4000 A5000 DPD-A3001 ($15.81)

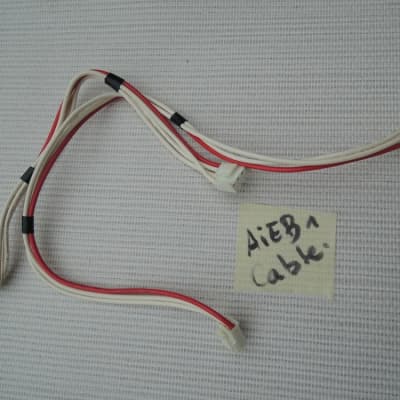

Pack power cable I/O Expansion Board AIEB1 / AIEB2 for Yamaha EX5, SU700, A5000, A4000 and A3000Pack power cable I/O Expansion Board AIEB1 / AIEB2 for Yamaha EX5, SU700, A5000, A4000 and A3000 ($28.22)

Hard disk Scsi for Yamaha A3000/A4000/A5000Hard disk Scsi for Yamaha A3000/A4000/A5000 ($50.81)

Yamaha A4000 Professional Sampler 1999 - SilverYamaha A4000 Professional Sampler 1999 - Silver ($420)

Yamaha A5000/A4000/A3000 Sampler CD Rom - PSLCD-101 - Piano/KeyboardsYamaha A5000/A4000/A3000 Sampler CD Rom - PSLCD-101 - Piano/Keyboards ($25)

Yamaha A5000/A4000/A3000 Sampler CD Rom - PSLCD-105 - Real Drums (sealed)Yamaha A5000/A4000/A3000 Sampler CD Rom - PSLCD-105 - Real Drums (sealed) ($29)

Yamaha A5000/A4000/A3000 Sampler CD Rom - PSLCD-104 - Strings / ChoirYamaha A5000/A4000/A3000 Sampler CD Rom - PSLCD-104 - Strings / Choir ($25)

Yamaha A5000/A4000/A3000 Sampler CD Rom - PSLCD-106 - World/Latin Instruments (sealed)Yamaha A5000/A4000/A3000 Sampler CD Rom - PSLCD-106 - World/Latin Instruments (sealed) ($25)

Yamaha - Motif-Rack , RS7000 , RM1X , DX200 , KX8 , A4000/5000 - Rotary knobYamaha - Motif-Rack , RS7000 , RM1X , DX200 , KX8 , A4000/5000 - Rotary knob ($13.99)

Yamaha A5000 / A4000 Sampler Floppy Drive Power Cable (unique small 2-pin)Yamaha A5000 / A4000 Sampler Floppy Drive Power Cable (unique small 2-pin) ($10)

Yamaha V769970 SCSI/IDE rare bridge adapter with sd card adapter and original Yamaha SCSI cable (SSD adapter kit for A4000/5000/3000 or other sampler/synth/workstation). Can be used internally or externally with some imagination / installation.Yamaha V769970 SCSI/IDE rare bridge adapter with sd card adapter and original Yamaha SCSI cable (SSD adapter kit for A4000/5000/3000 or other sampler/synth/workstation). Can be used internally or externally with some imagination / installation. ($138.25)

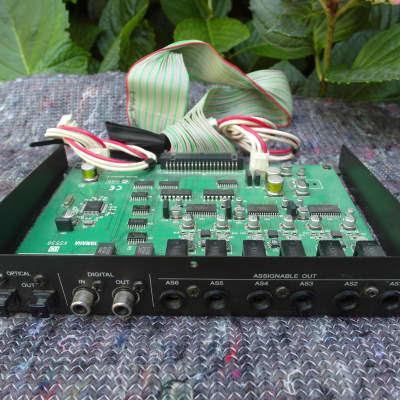

Yamaha AIEB1 I/O XS538 expansion board for samplers SU700, A3000/A4000/A5000Yamaha AIEB1 I/O XS538 expansion board for samplers SU700, A3000/A4000/A5000 ($337.59)

YAMAHA E/S AIEB1 AIEB2 Rare Power câble EX5 SU700 A5000 4000 A3000YAMAHA E/S AIEB1 AIEB2 Rare Power câble EX5 SU700 A5000 4000 A3000 ($32.74)

YAMAHA lot 2 Barettes x 32 M° Memory RAM 64 MB A-3000 4000 5000 SU-700 EX5R EX-7YAMAHA lot 2 Barettes x 32 M° Memory RAM 64 MB A-3000 4000 5000 SU-700 EX5R EX-7 ($89.20)

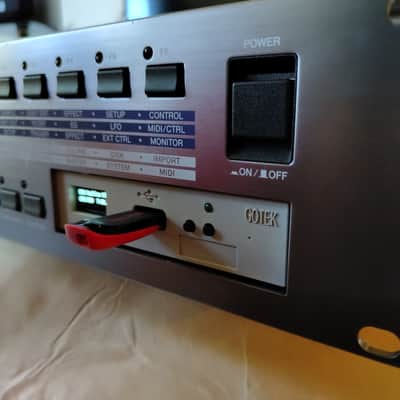

USB Floppy Drive Emulator for Yamaha A4000 / A5000 plus 1000's of disks on 16GB stick & OLED DisplayUSB Floppy Drive Emulator for Yamaha A4000 / A5000 plus 1000's of disks on 16GB stick & OLED Display ($100)

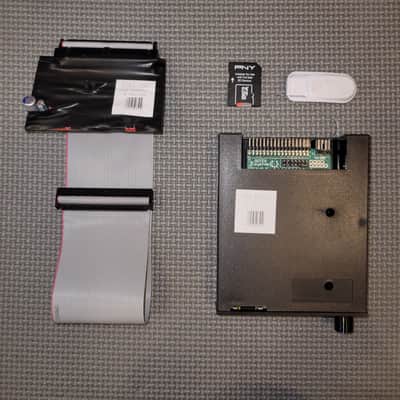

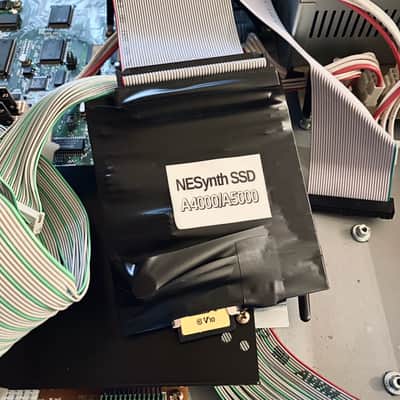

NEW SSD Upgrade Kit for Yamaha A4000/A5000! Plug N Play Ready + Sample LibraryNEW SSD Upgrade Kit for Yamaha A4000/A5000! Plug N Play Ready + Sample Library ($165)
