The Korg Z3 guitar synthesizer is a 1U device that uses a 24-pin guitar connector and is meant to be used with the Korg ZD3 guitar pickup.

Its latency is 20 milliseconds on average, which is faster than most guitar synths were when it was released. It uses an FM-based Yamaha YM2414 chip in its synth engine and sounds are similar to the Korg DS-8 and Yamaha TX81Z / DX11.

Specifications

Year Released: 1989

Polyphony: 6 notes

Preset Patches: 128

Effects: 16-bit digital reverb

Power Consumption: 24 watts

Weight: 4.5 kg

Dimensions: 482 mm x 332.5 mm x 44 mm

User Demo Videos

Rating

File Downloads

Korg Z3 Manual

Korg Z3 Patch List

Items for Sale on Reverb

Korg Korg KORG Z3 ROLAND GR 24 TO 13-PIN CONVERTER ROLAND GR300 GR700 G707. ($277.26)

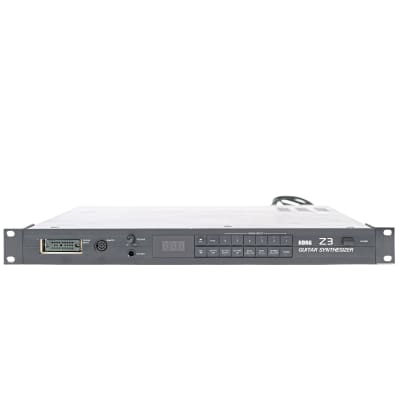

Korg Z3 Guitar Synthesizer - Coveted FM Synthesis for Guitar Players ($429.99)

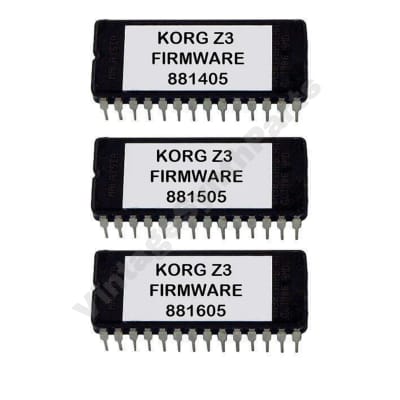

Korg Z3 Firmware Os Eprom Guitar Synthesizer Z-3 Rom ($22.21)
