Digital PianosRoland ⇝ Roland RD-300SX

The RD-300SX supports General MIDI 2 (GM2).

Specifications

Keyboard: 88 keys with velocity

Polyphony: 128 notes

Multitimbral: 16 parts

Preset Patches: 326

User Performances: 32

Preset Drum Kits: 14

Preset Styles/Rhythms: 185

ROM: 64 MB

Effects: reverb (4 types), 2-band digital equalizer, multi-effects (78 types)

Screen: 7-segment, 3-character LED

Power Consumption: 11 watts, 9V DC power adaptor

Weight: 15.5 kg

Dimensions: 1408 mm x 336 m x 134 mm

This keyboard is MIDI-enabled.

MIDI Connections: Both USB MIDI support and standard 5-pin MIDI in and out connections.

USB Connection: USB Type B

User Demo Videos

Rating


Not Yet Rated (click a star to rate)

File Downloads

Roland RD-300SX Manual

Roland RD-300SX MIDI Implementation

Items for Sale on Reverb

Roland - RD-700 , RD-300SX  - Rotary potentiometer  50KB with center detentRoland - RD-700 , RD-300SX - Rotary potentiometer 50KB with center detent ($8.99)

Roland - EP-70 , RS-5/9 , SH-32 , FP-2/3/4/5 , RD-300SX - Power switchRoland - EP-70 , RS-5/9 , SH-32 , FP-2/3/4/5 , RD-300SX - Power switch ($6.90)

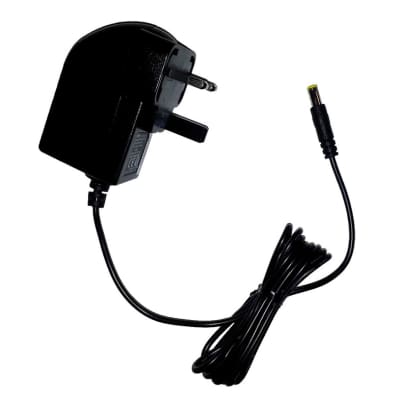

Power Supply Replacement for ROLAND RD-300SX DIGITAL PIANO KEYBOARD UK ADAPTER 9V 2APower Supply Replacement for ROLAND RD-300SX DIGITAL PIANO KEYBOARD UK ADAPTER 9V 2A ($14.26)
